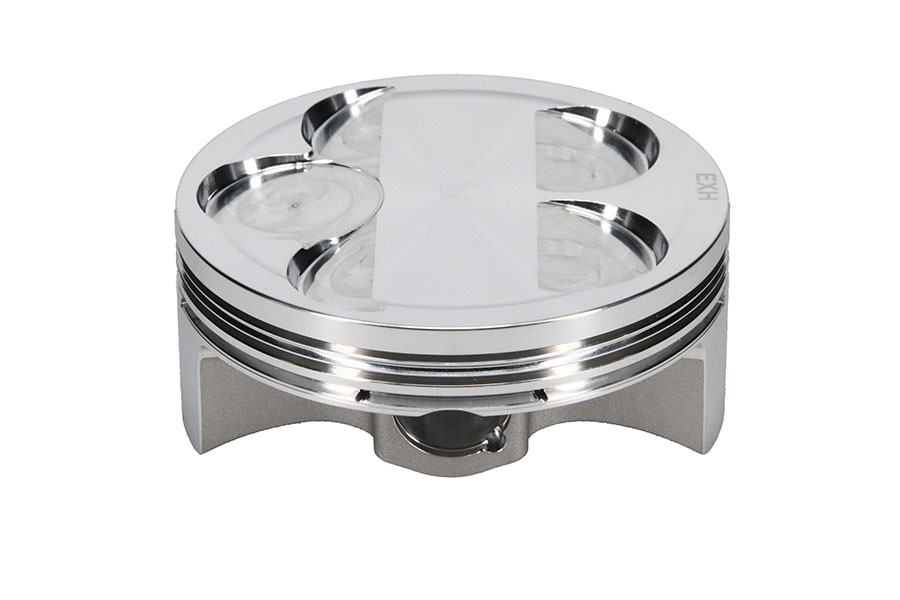

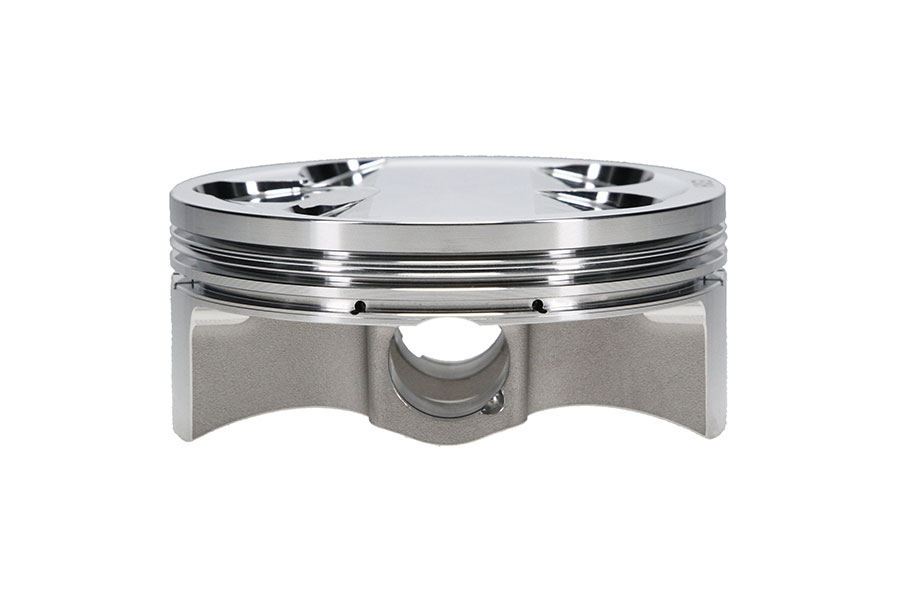

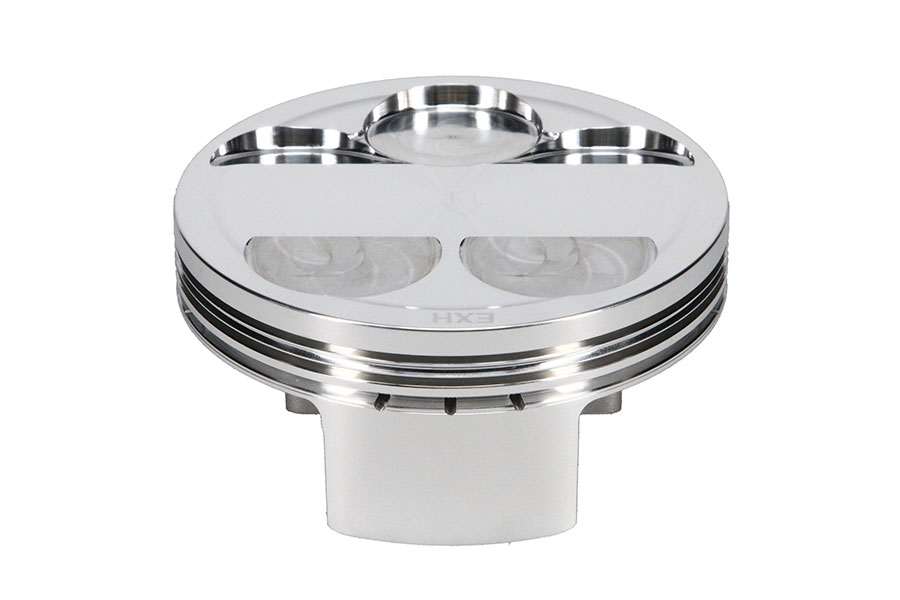

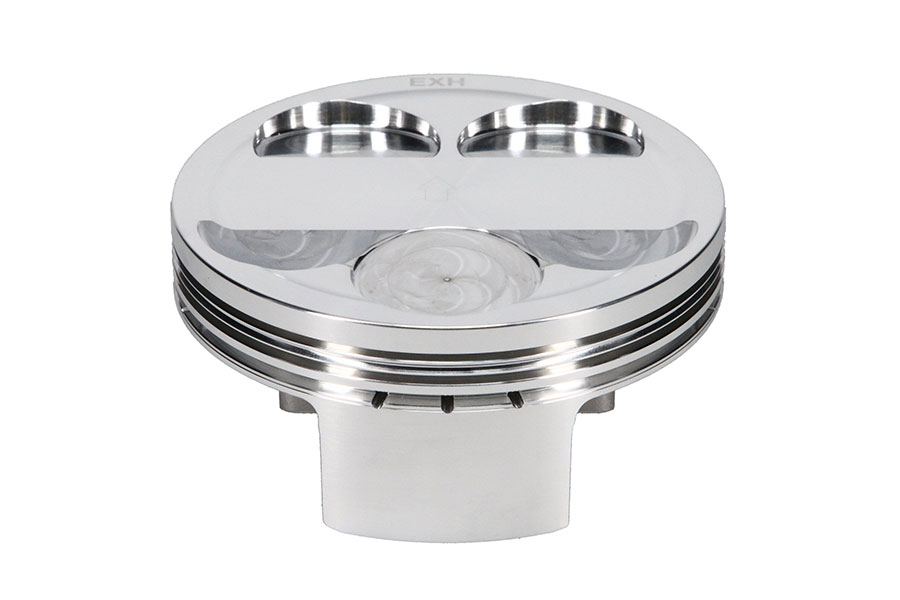

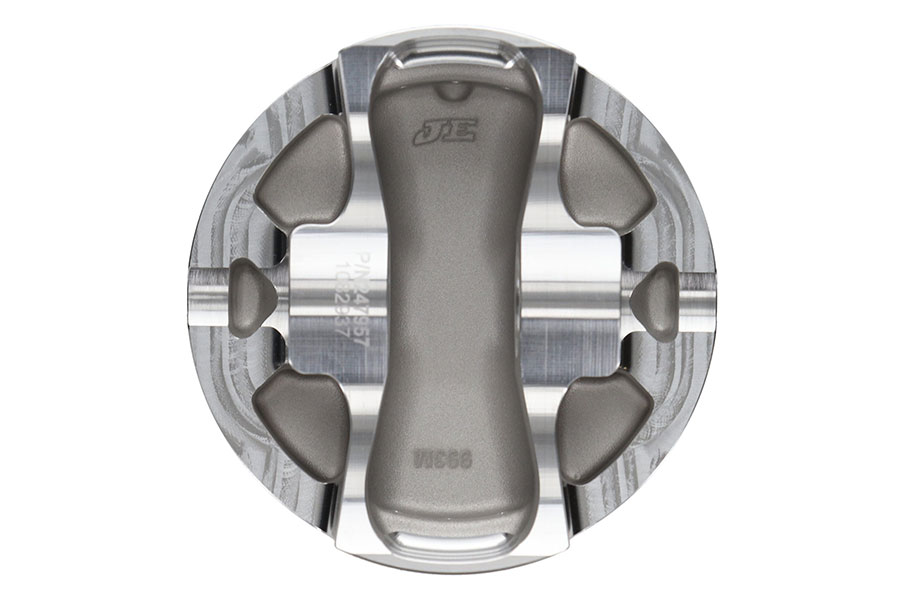

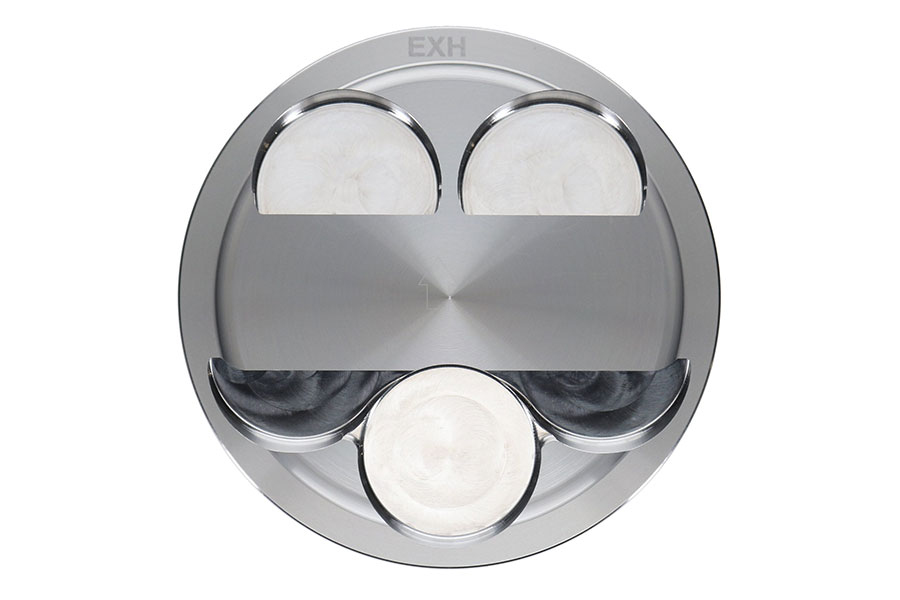

JE Pistons Piston Kit 98.00mm - 247952

Contact us for Availability

$291.50

Information

Bore Diameter: 98.00mm.


Note: Product images may only represent the class of product and not the specific model.
  • Bore Diameter: 98.00mm

Technical Details
Bore Diameter
98.00
Piston Head Type
Dish
Piston Volume
23.56
Cylinder Head
YFZ 450
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.050
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.048
Second Compression Ring Thickness
0.06
Oil Ring Thickness
0.0795
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
316
Compression Ratio - Actual
13.00:1
Pin Wall Thickness
0.160

Matched Vehicles

The following are a match for this product.

JE Pistons
