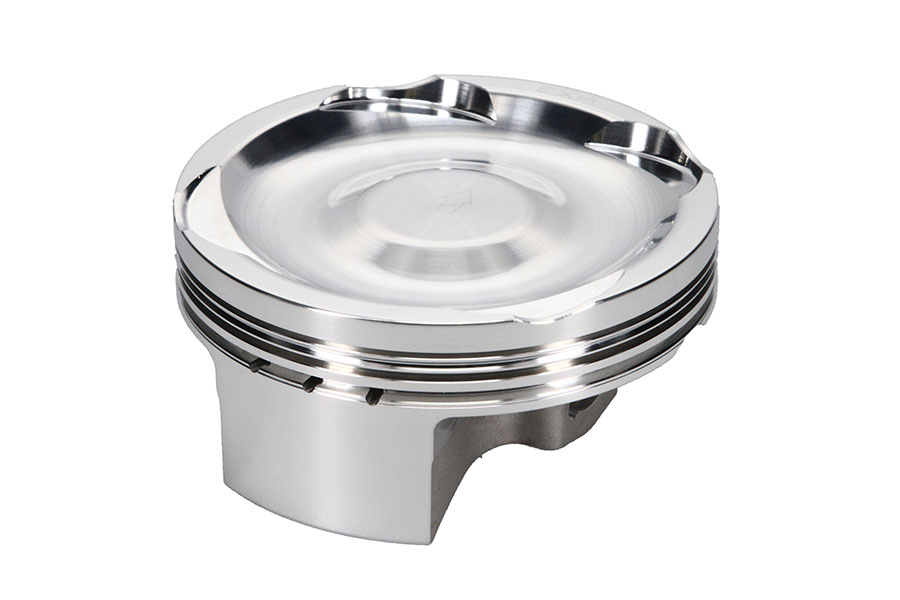

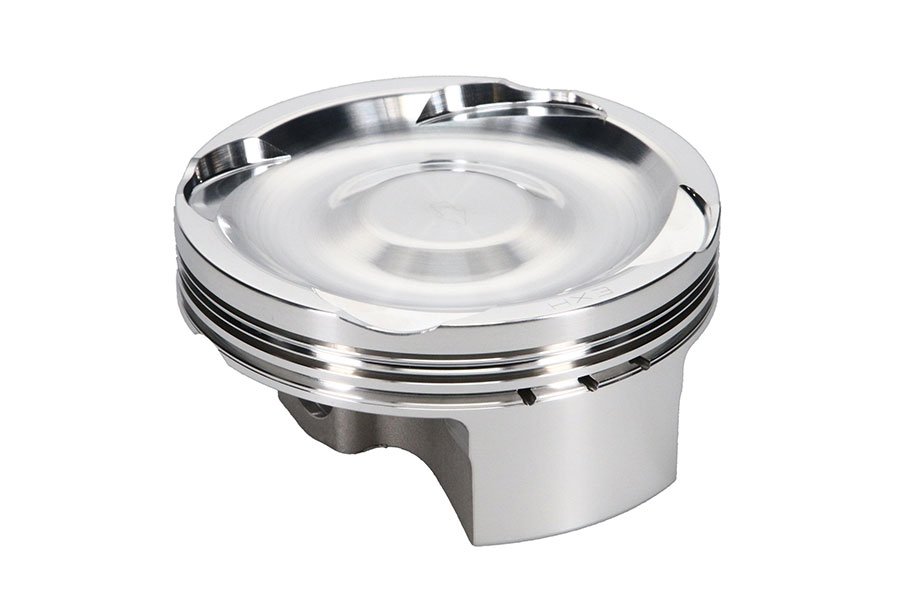

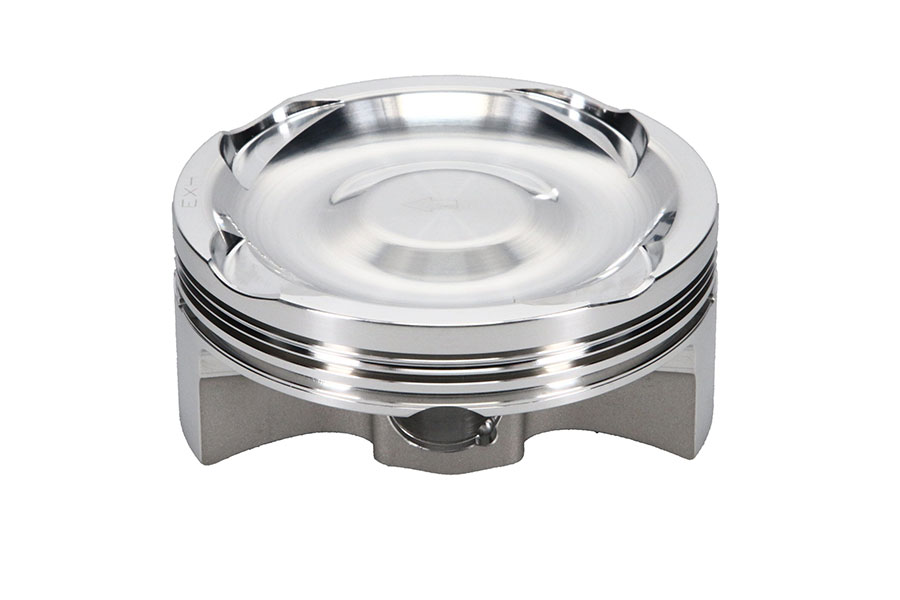

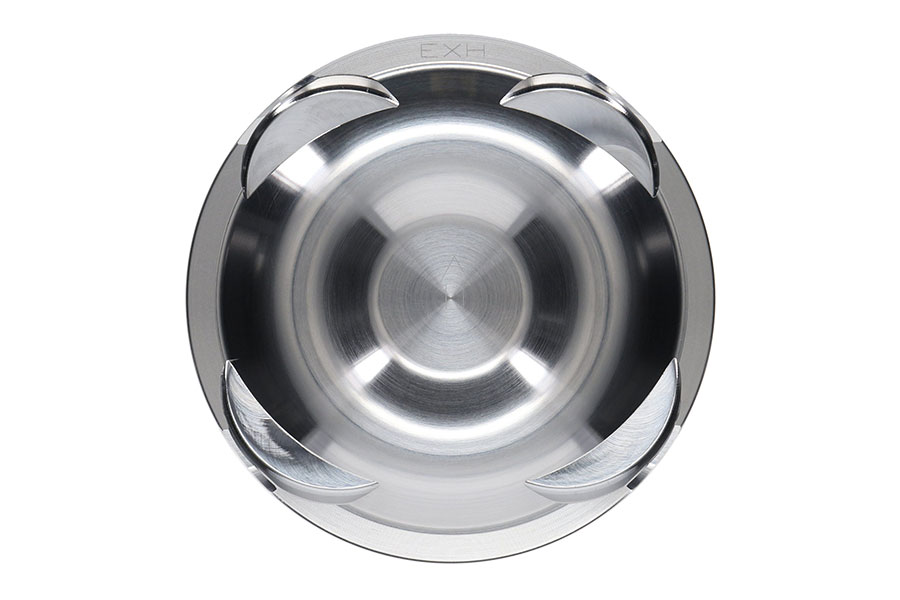

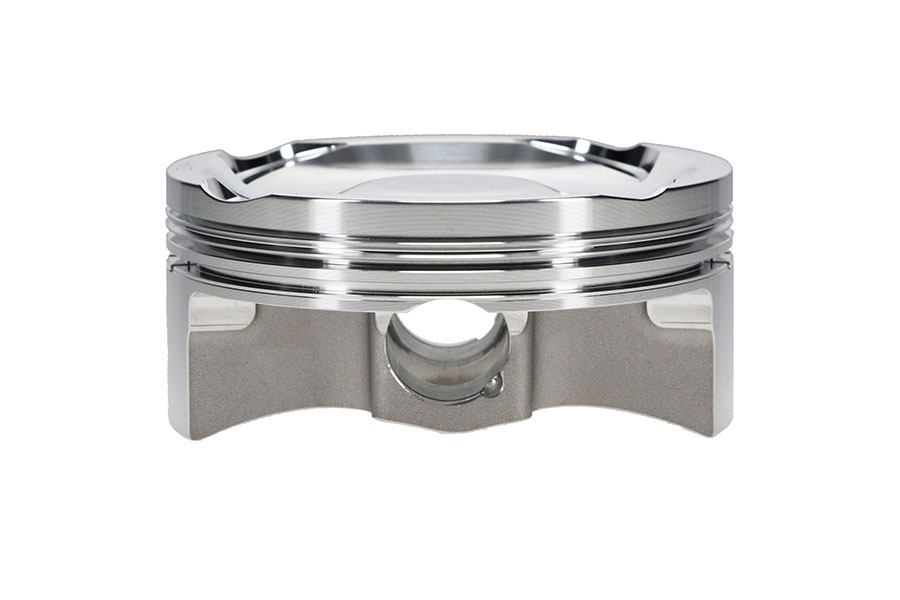

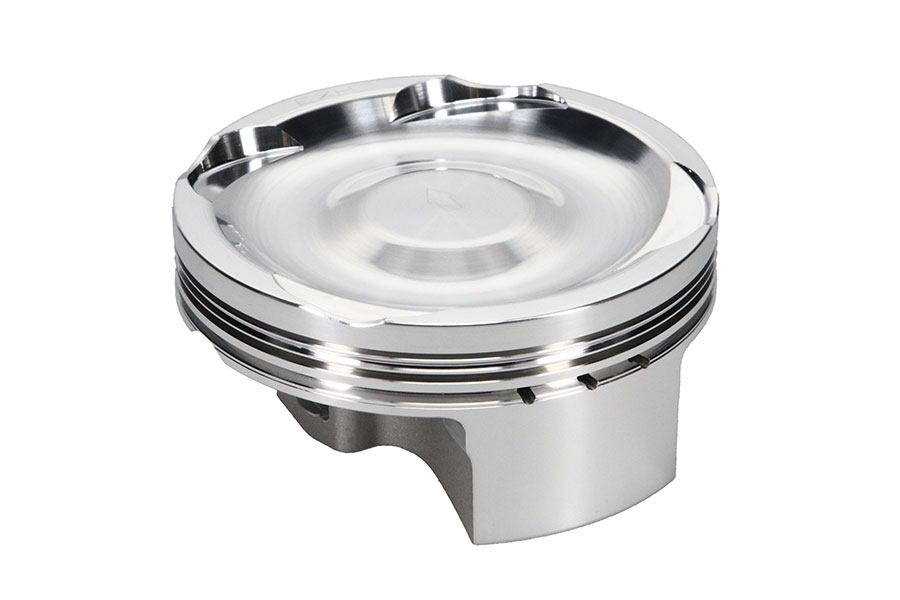

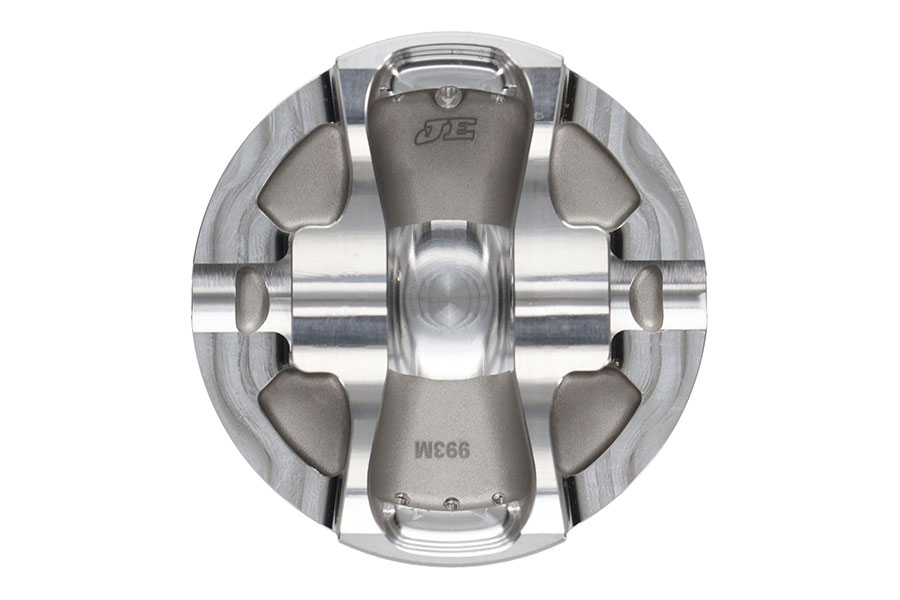

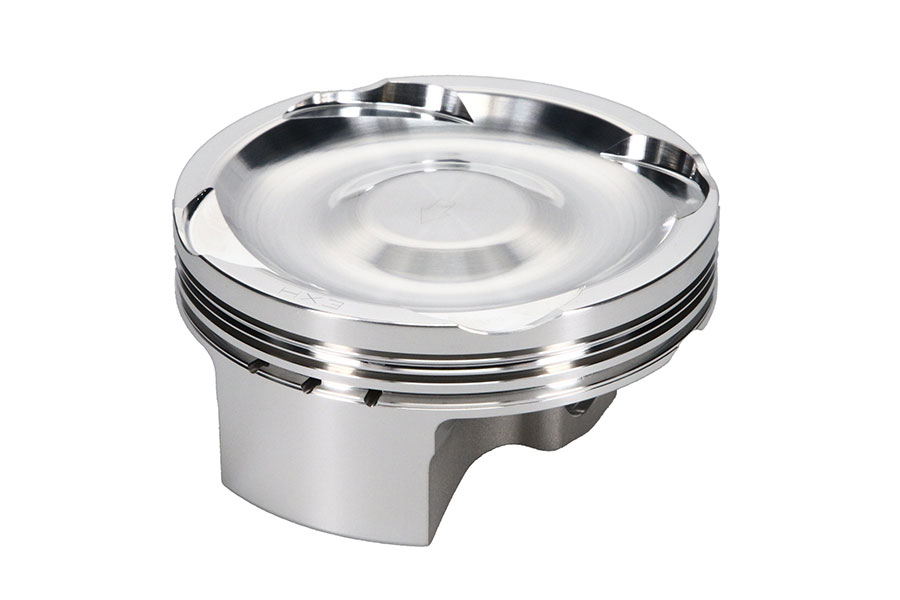

JE Pistons Piston Kit 93.00mm - 363681
Information
Bore Diameter: 93.00mm.
- Manufacturer: JE Pistons

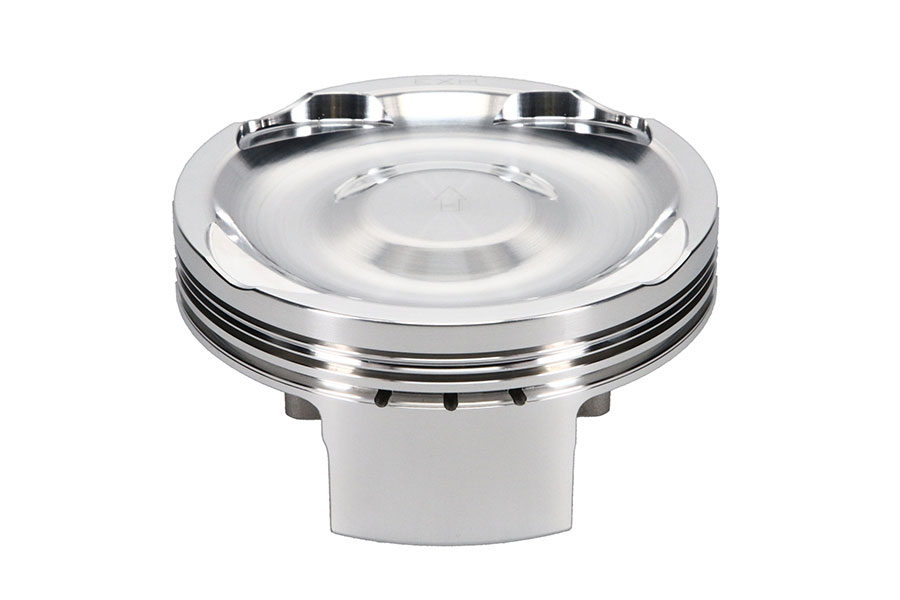

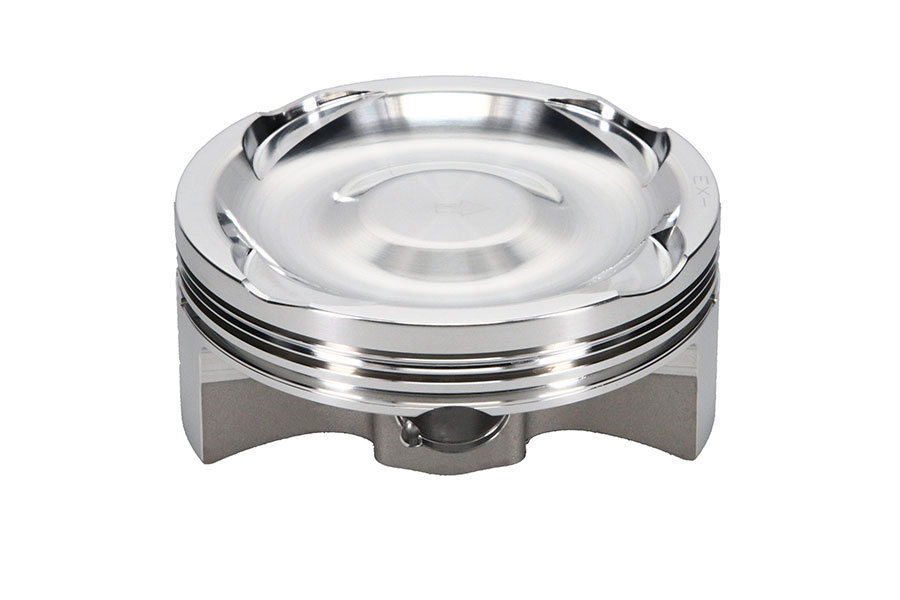

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 93.00mm
- Technical Details
Bore Diameter
93.00
Piston Head Type
Dome
Piston Volume
-3.8
Cylinder Head
RZR XP 900
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.050
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
FSR
Compression Ratio - Actual
11.00:1
Pin Wall Thickness
0.160
Matched Vehicles
The following are a match for this product.
| Polaris 900 Ranger RZR XP 4 - 2013, 2012 |
| Polaris 900 Ranger RZR XP 4 EPS LE - 2013, 2012 |
| Polaris 900 Ranger RZR XP - 2013, 2012, 2011 |
| Polaris 900 Ranger RZR XP EPS LE - 2013 |
| Polaris 900 Ranger RZR XP EPS Walker Evans LE - 2013 |
| Polaris 900 Ranger RZR XP HO Jagged X Edition - 2013 |
| Polaris 900 Ranger RZR XP LE - 2013, 2012, 2011 |
