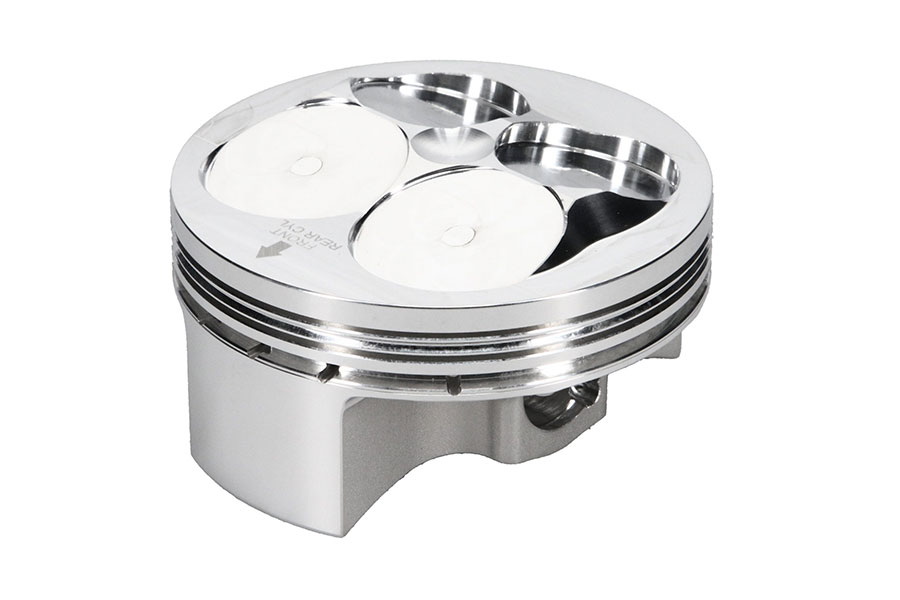

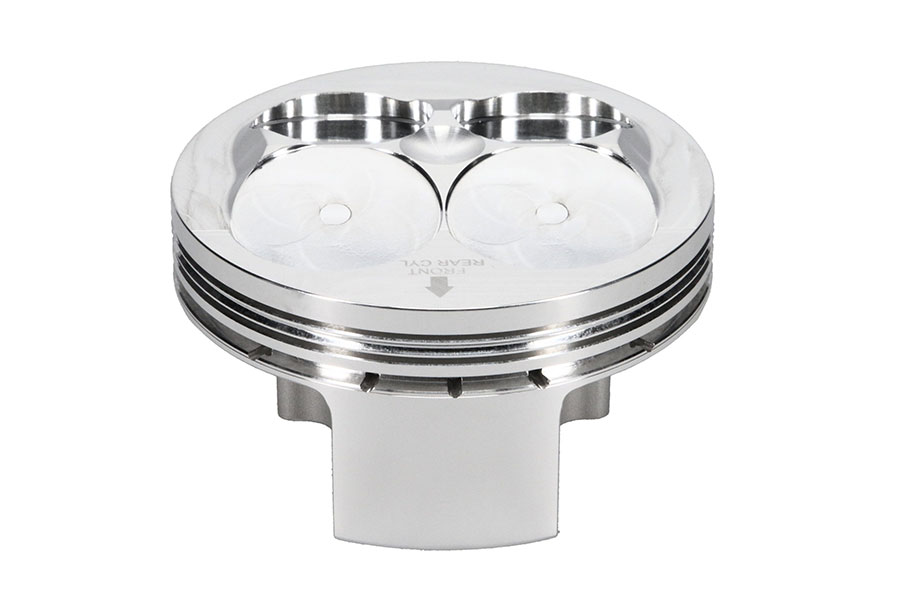

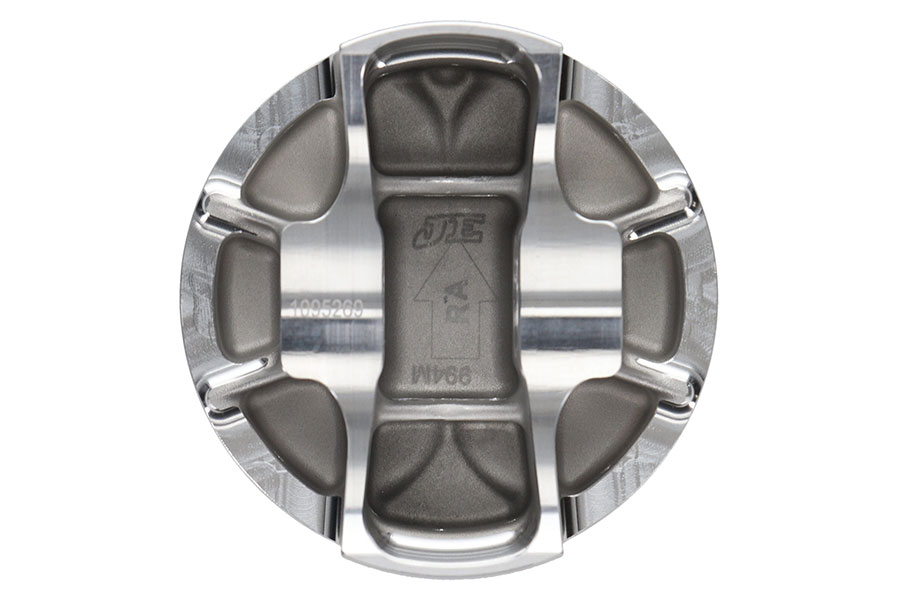

JE Pistons Piston Kit 93.00mm - 300183

Contact us for Availability

$509.20

Information

Bore Diameter: 93.00mm.


Note: Product images may only represent the class of product and not the specific model.
  • Bore Diameter: 93.00mm

Technical Details
Bore Diameter
93.00
Piston Head Type
Dome
Piston Volume
3.6
Cylinder Head
CAN-AM
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.050
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
312
Compression Ratio - Actual
13.00:1
Pin Wall Thickness
0.160

Matched Vehicles

The following are a match for this product.
