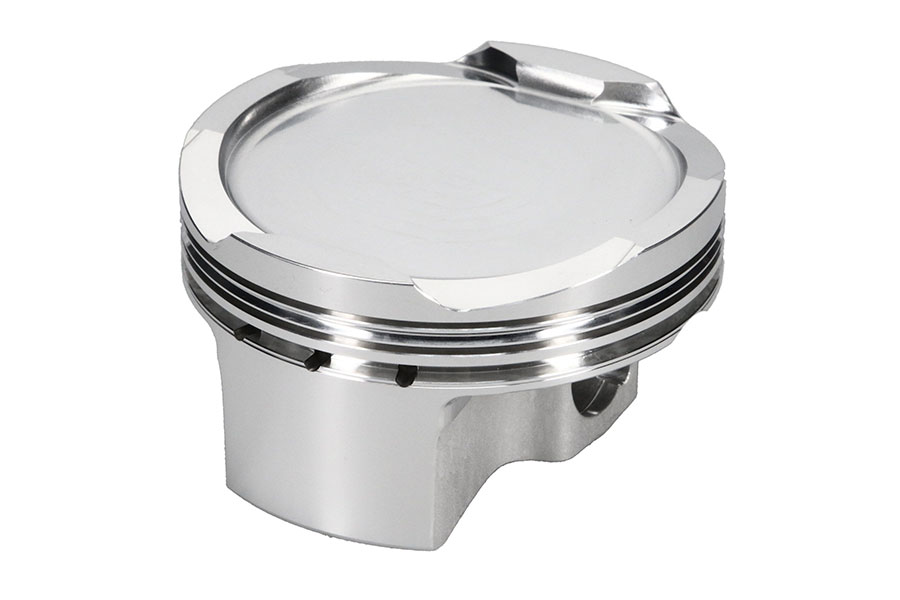

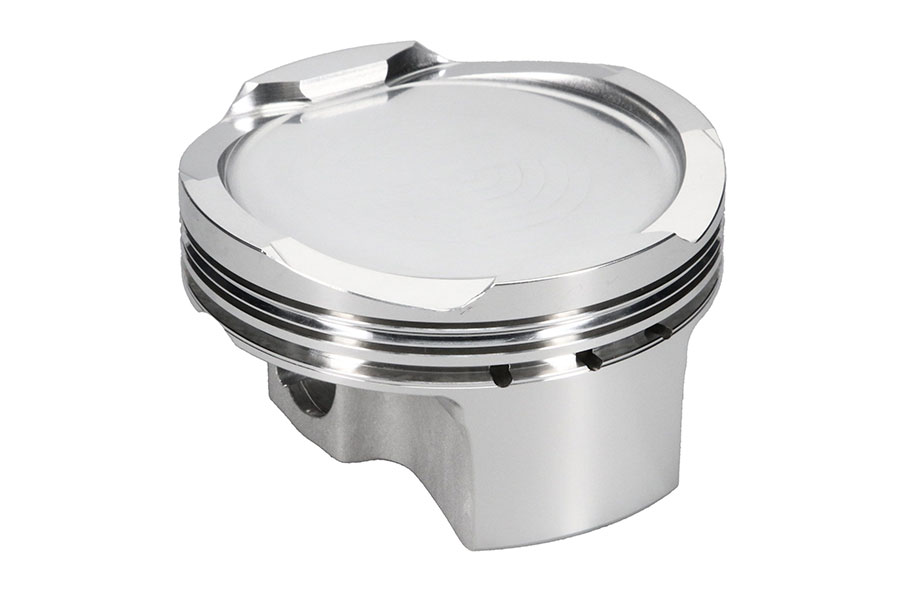

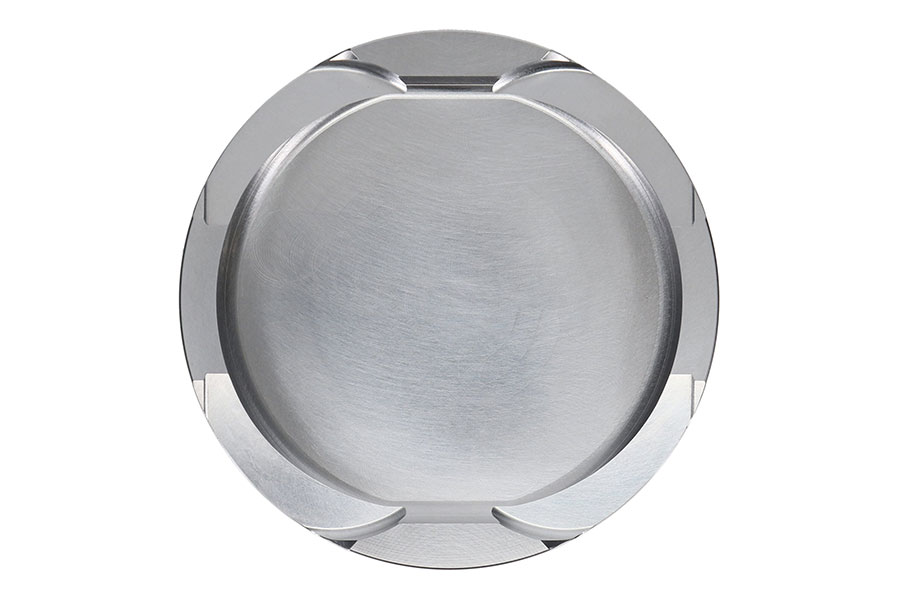

JE Pistons Piston Kit 91.00mm - 308414
Information
Bore Diameter: 91.00mm.
- Manufacturer: JE Pistons

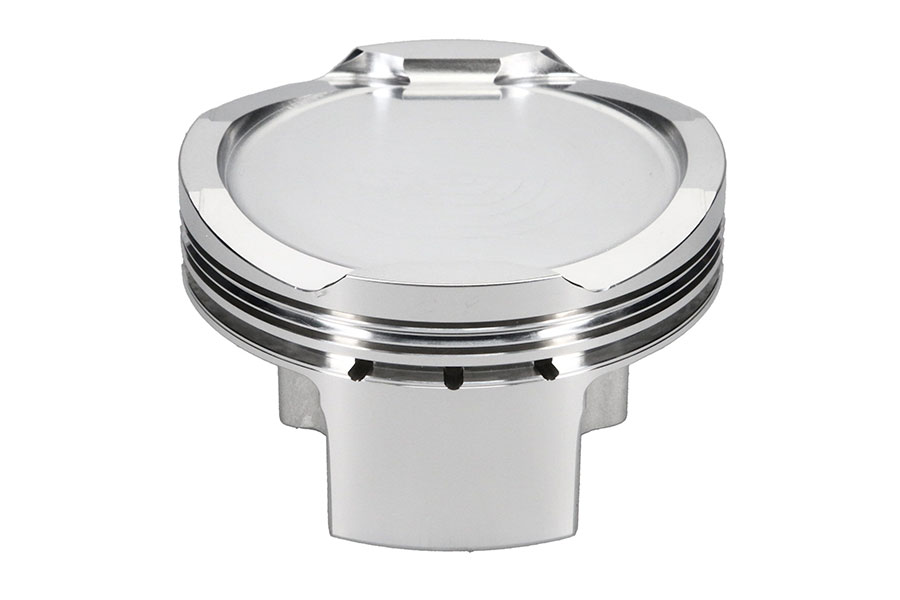

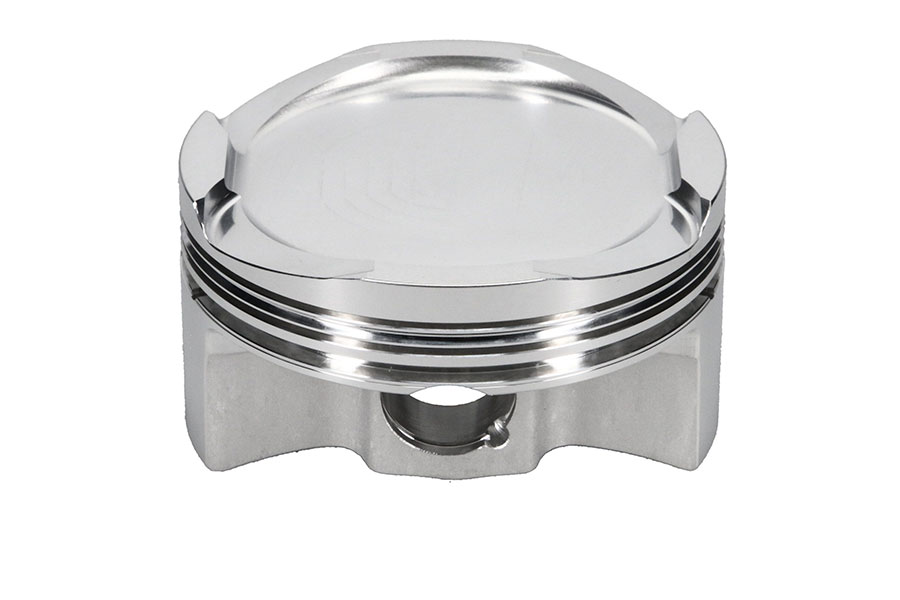

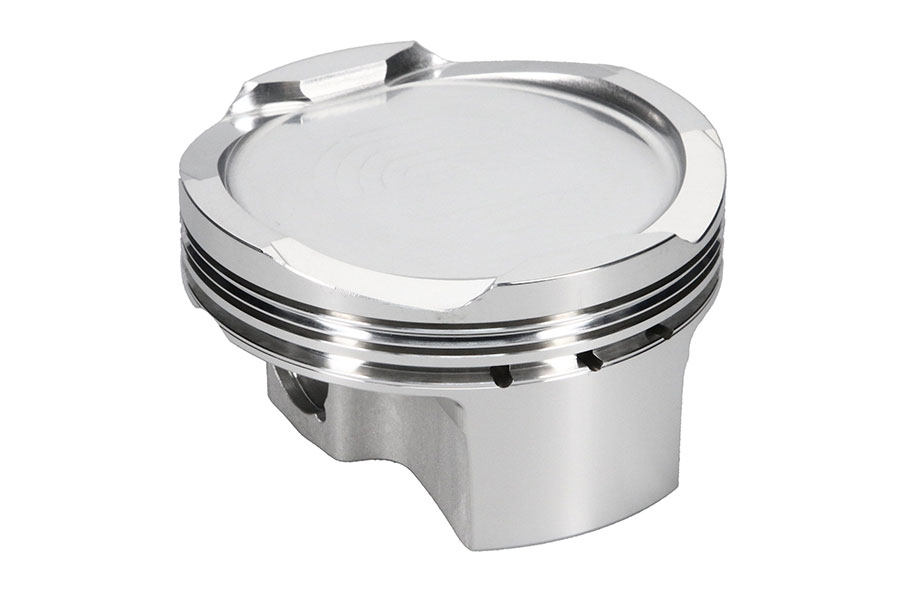

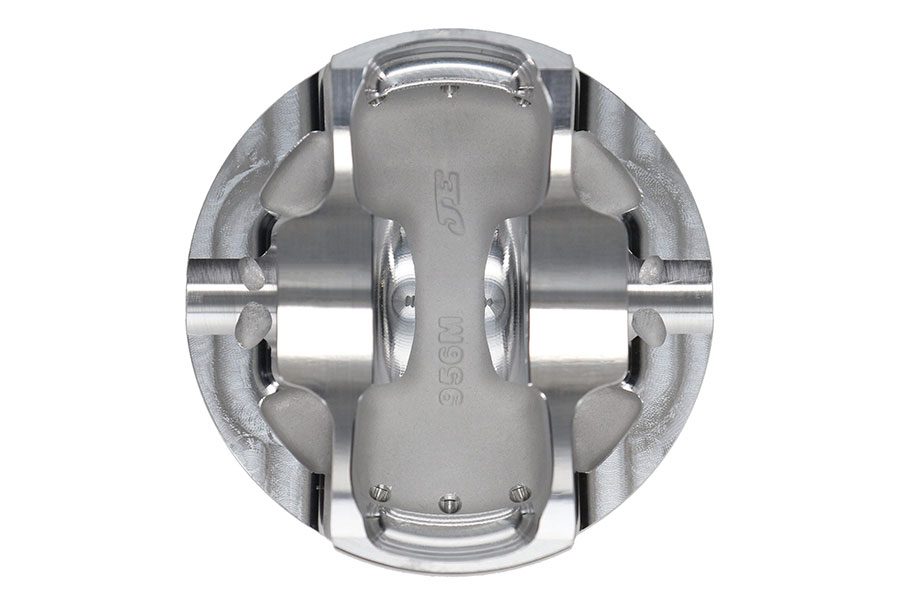

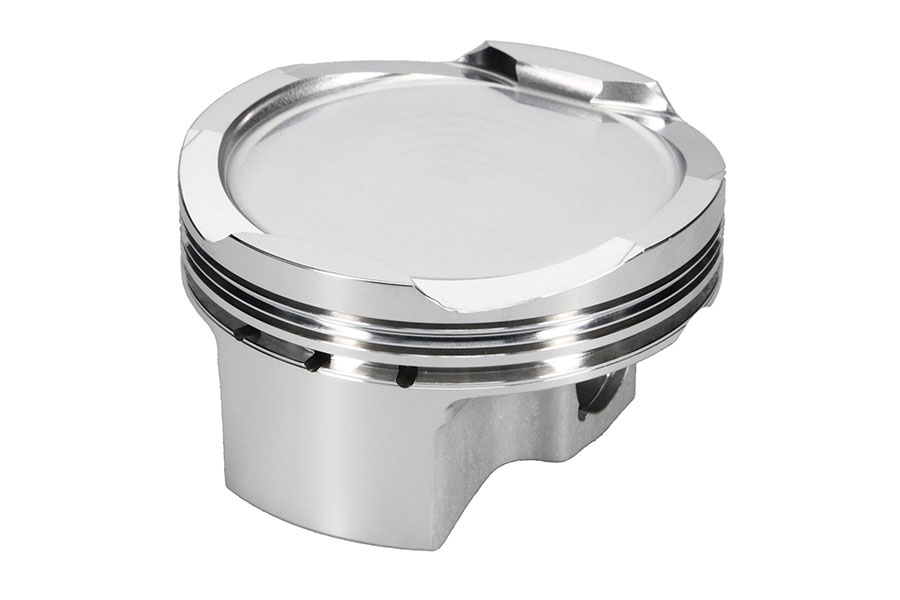

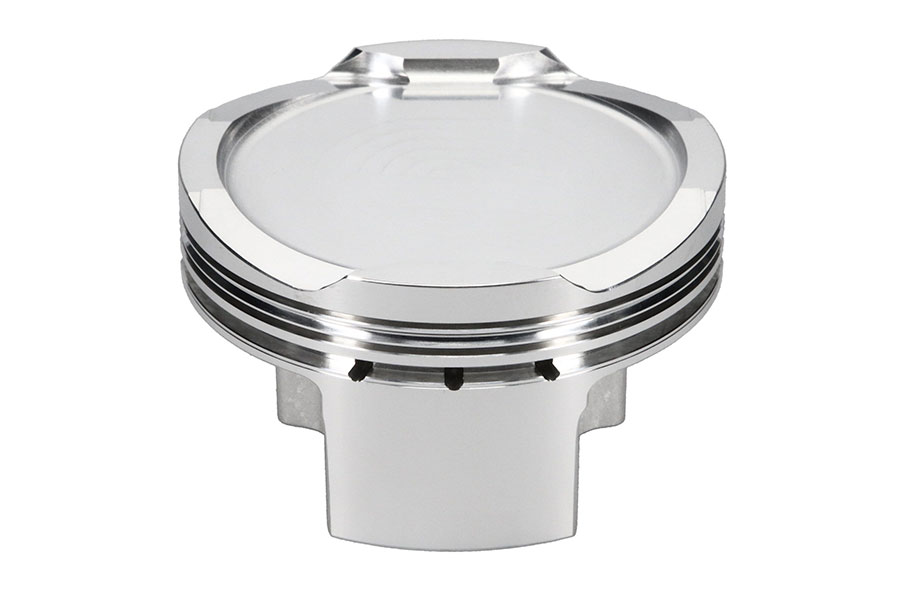

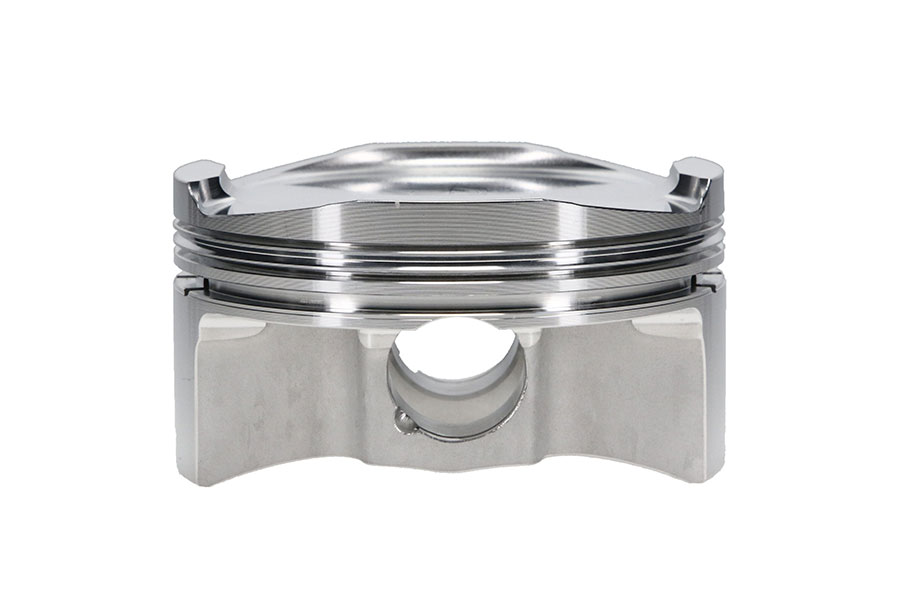

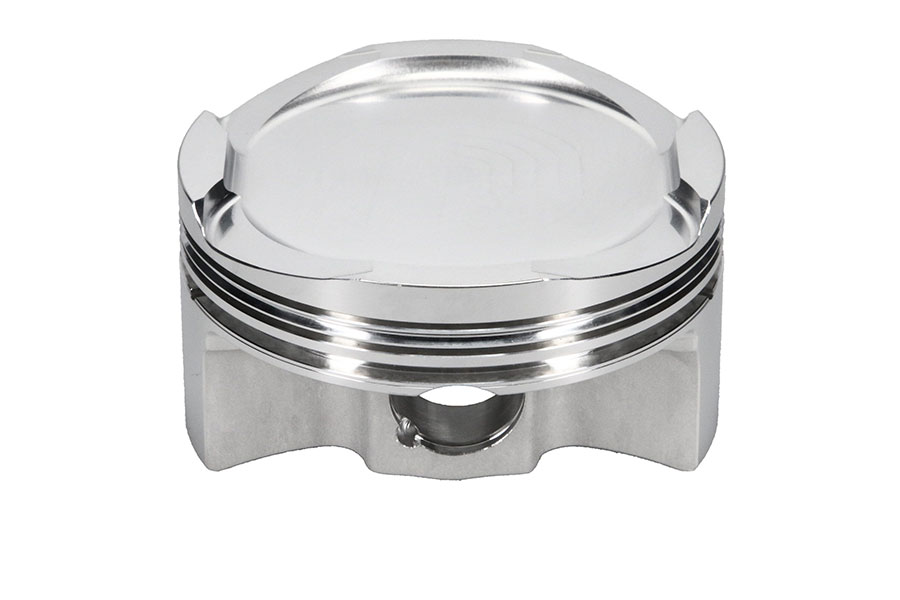

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 91.00mm
- Technical Details
Bore Diameter
91.00
Piston Head Type
Dish
Piston Volume
-3
Cylinder Head
CAN-AM
Piston Pin Outside Diameter
0.866
Piston Pin Length
2.050
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
333
Compression Ratio - Actual
12.50:1
Pin Wall Thickness
0.150
Matched Vehicles
The following are a match for this product.
| Can-Am Commander 1000 X - 2013, 2012, 2011 |
| Can-Am Commander 1000 XT - 2017, 2016, 2015, 2014, 2013, 2012, 2011 |
| Can-Am Commander 1000 XT-P - 2017, 2016, 2015, 2014 |
| Can-Am Defender DPS HD10 - 2018, 2017, 2016 |
| Can-Am Defender HD10 - 2018, 2017, 2016 |
| Can-Am Defender HD10 Mossy Oak Hunting Edition - 2018, 2017 |
| Can-Am Defender HD10 X MR - 2018 |
| Can-Am Defender HD10 XT-P - 2018 |
| Can-Am Defender MAX HD10 DPS - 2018, 2017 |
| Can-Am Defender MAX HD10 LONE STAR - 2018 |
| Can-Am Defender MAX HD10 XT - 2018, 2017 |
| Can-Am Defender MAX HD10 XT CAB - 2018 |
| Can-Am Defender XT CAB HD10 - 2018, 2017, 2016 |
| Can-Am Defender XT HD10 - 2018, 2017, 2016 |
| Can-Am Outlander 1000 6X6 XT - 2018, 2017, 2016, 2015 |
| Can-Am Outlander 1000 DPS - 2018, 2017 |
| Can-Am Outlander 1000 EFI - 2012 |
| Can-Am Outlander 1000 EFI DPS - 2016, 2015, 2014, 2013 |
| Can-Am Outlander 1000 EFI XT - 2016, 2015, 2014, 2013, 2012 |
| Can-Am Outlander 1000 EFI XT-P - 2016, 2015, 2014, 2013 |
| Can-Am Outlander 1000 Mossy Oak Hunting Edition - 2018, 2017 |
| Can-Am Outlander 1000 X MR - 2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013 |
| Can-Am Outlander 1000 X XC - 2018 |
| Can-Am Outlander 1000 XT - 2018, 2017 |
| Can-Am Outlander 1000 XT-P - 2018, 2017 |
| Can-Am Renegade 1000 - 2018, 2017, 2016, 2015, 2014, 2013, 2012 |
| Can-Am Renegade 1000 EFI X XC - 2012 |
| Can-Am Renegade 1000 X MR - 2018, 2017, 2016 |
| Can-Am Renegade 1000 X XC - 2018, 2017, 2016, 2015, 2014, 2013 |
