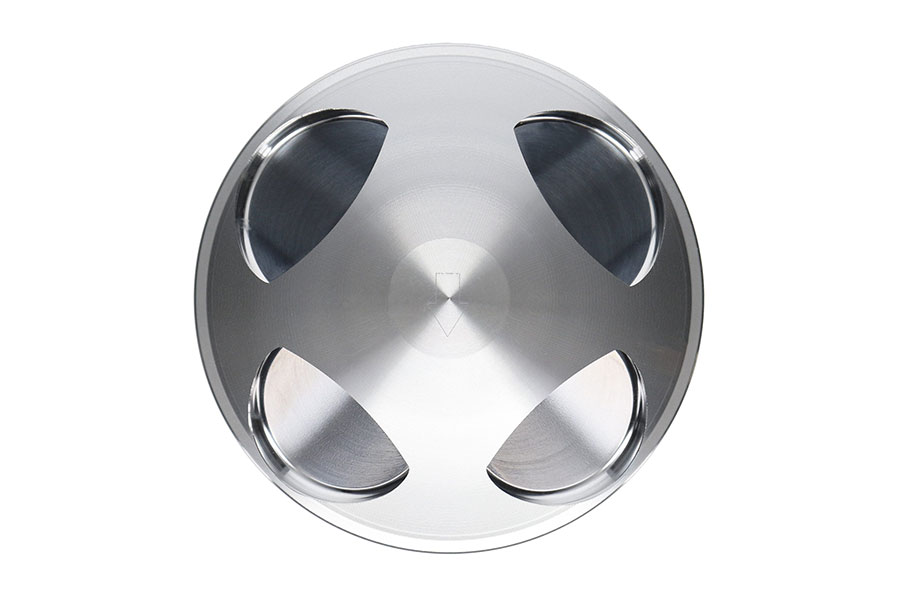

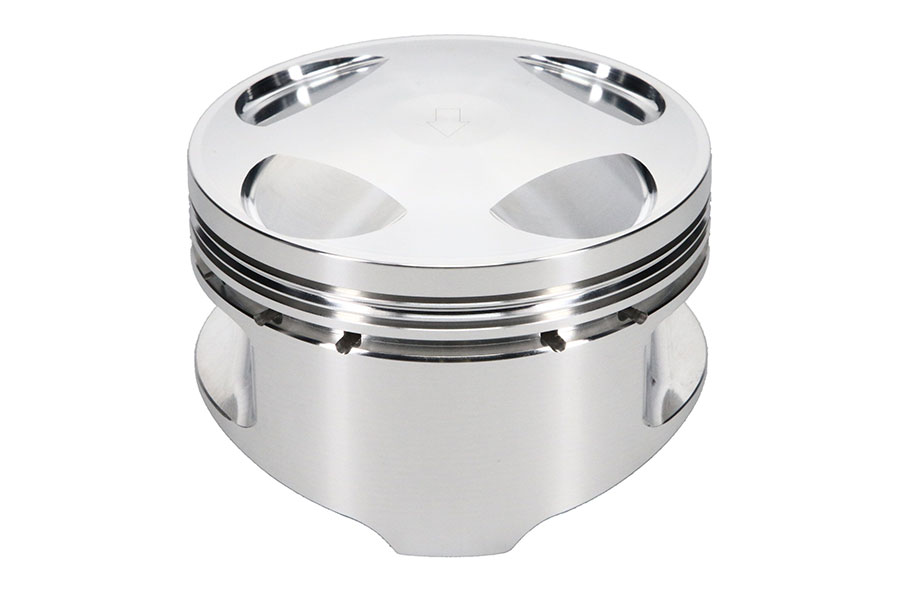

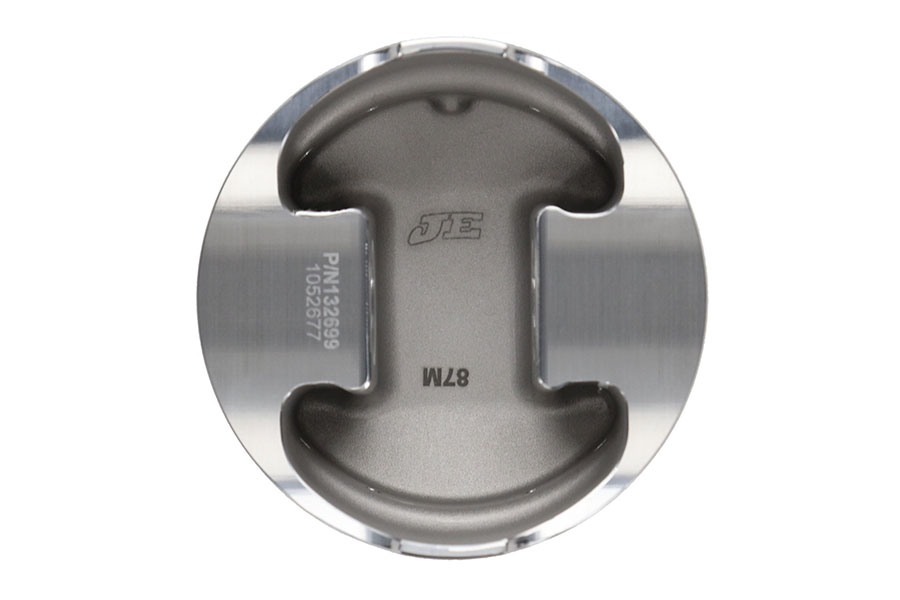

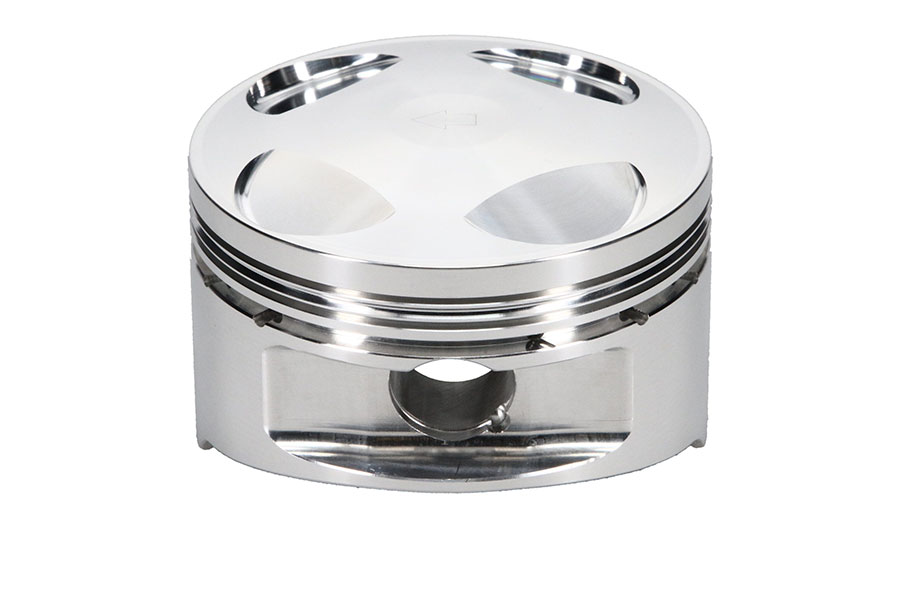

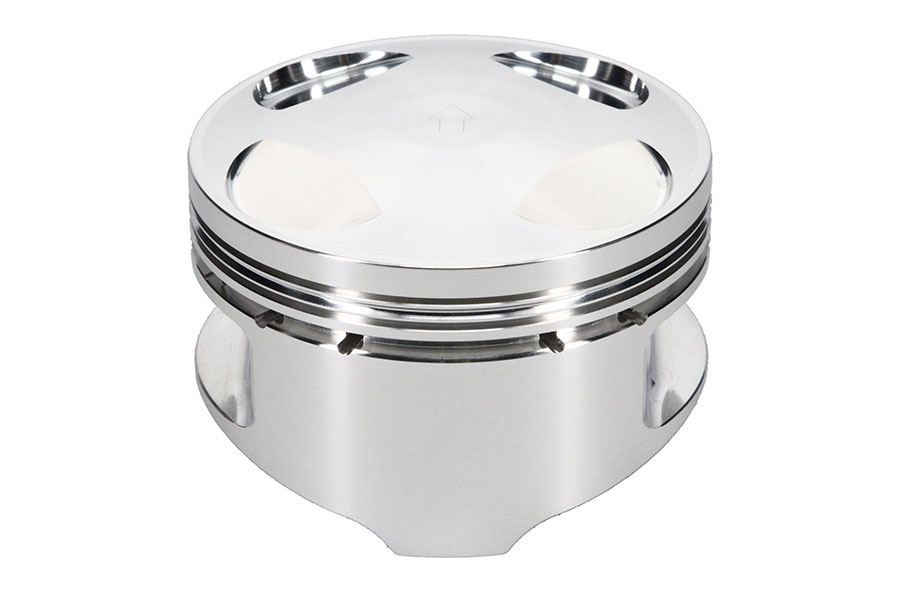

JE Pistons Piston Kit 88.00mm - 177240

Contact us for Availability

$255.00

Information

Bore Diameter: 88.00mm.


Note: Product images may only represent the class of product and not the specific model.
  • Bore Diameter: 88.00mm

Technical Details
Bore Diameter
88.00
Piston Head Type
Dome
Cylinder Head
EX/XR 400 R
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.350
Piston Pin Material
5115
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
Round
Piston Avg Weight
298
Compression Ratio - Actual
11.00:1
Pin Wall Thickness
0.140

Matched Vehicles

The following are a match for this product.
