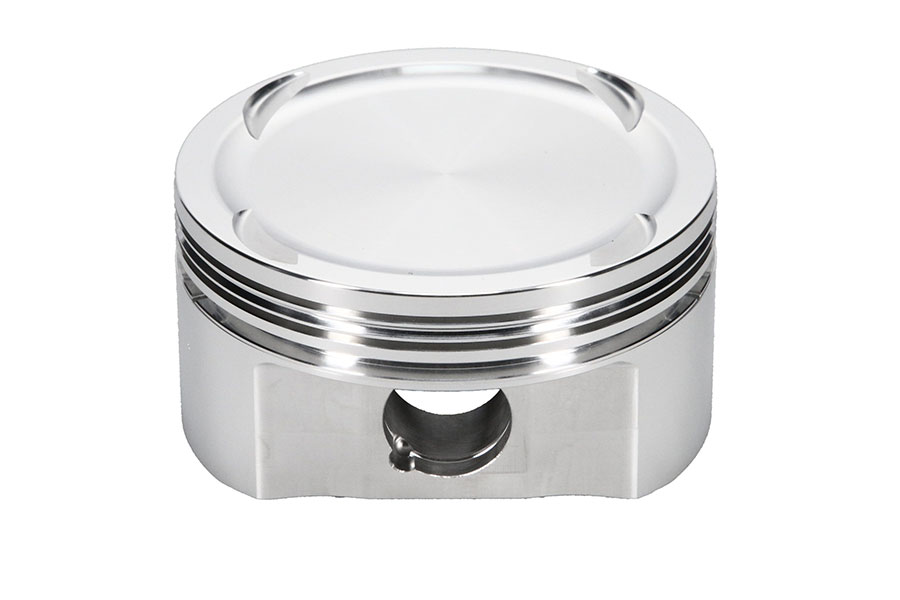

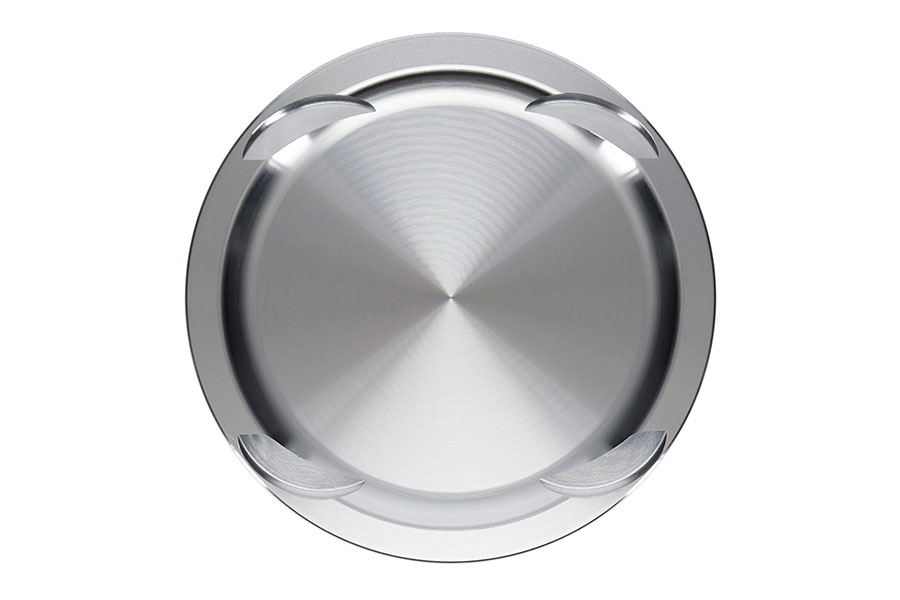

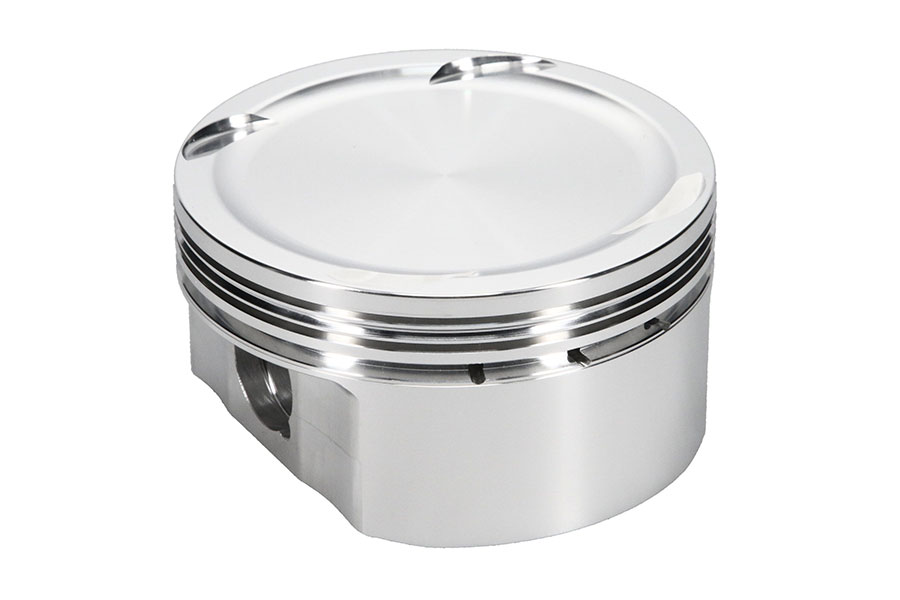

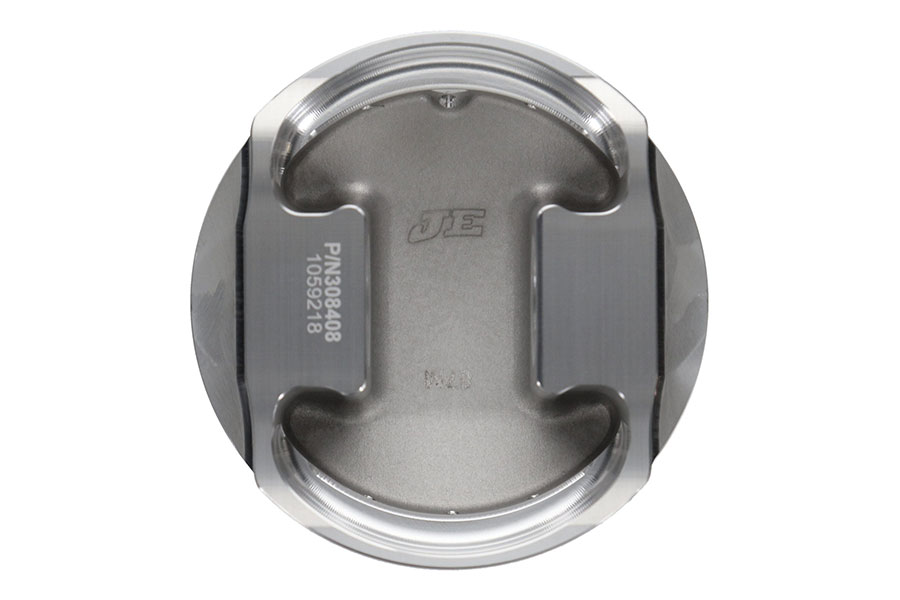

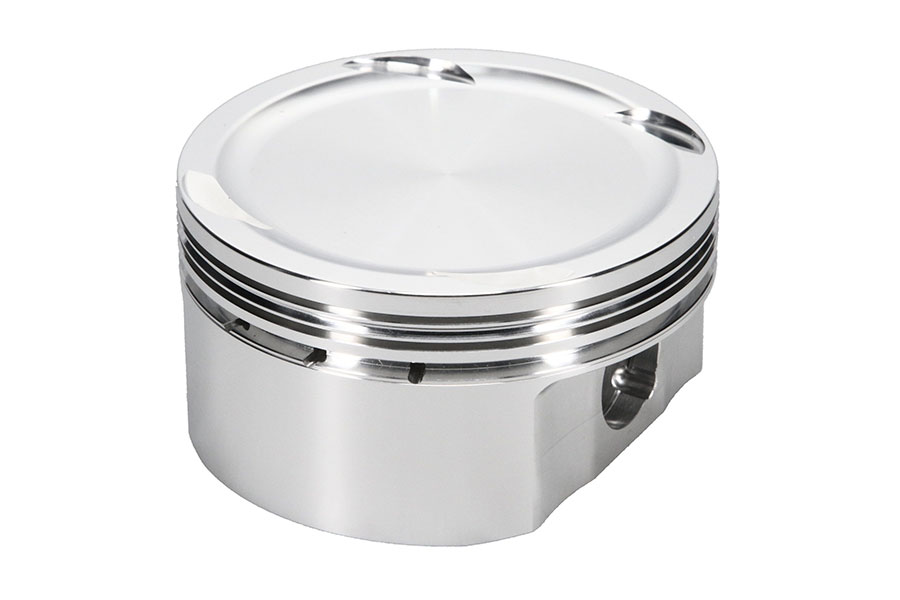

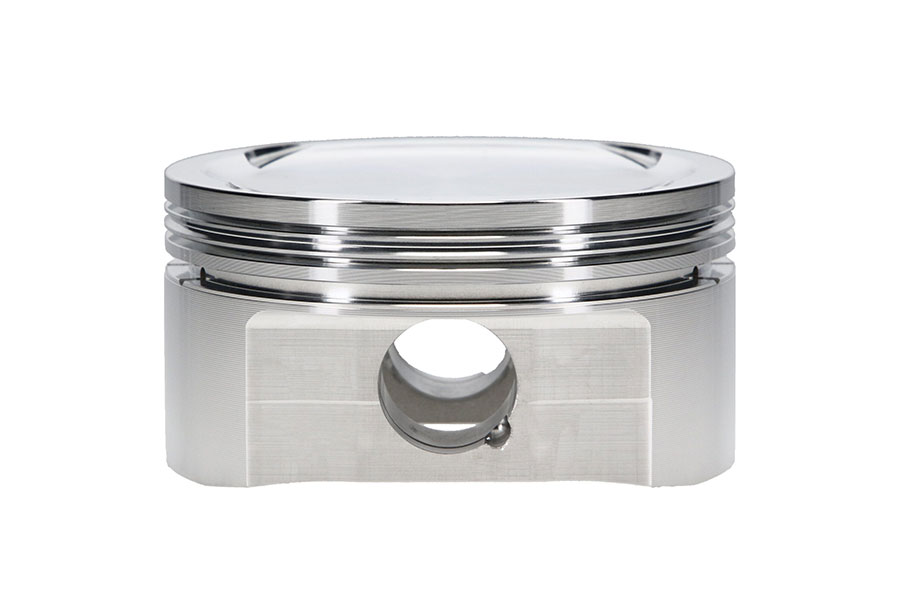

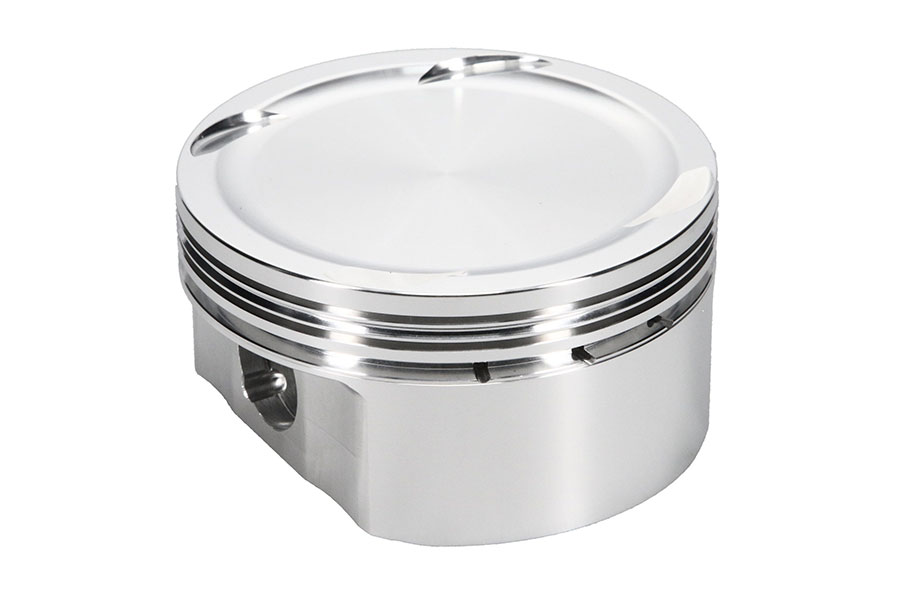

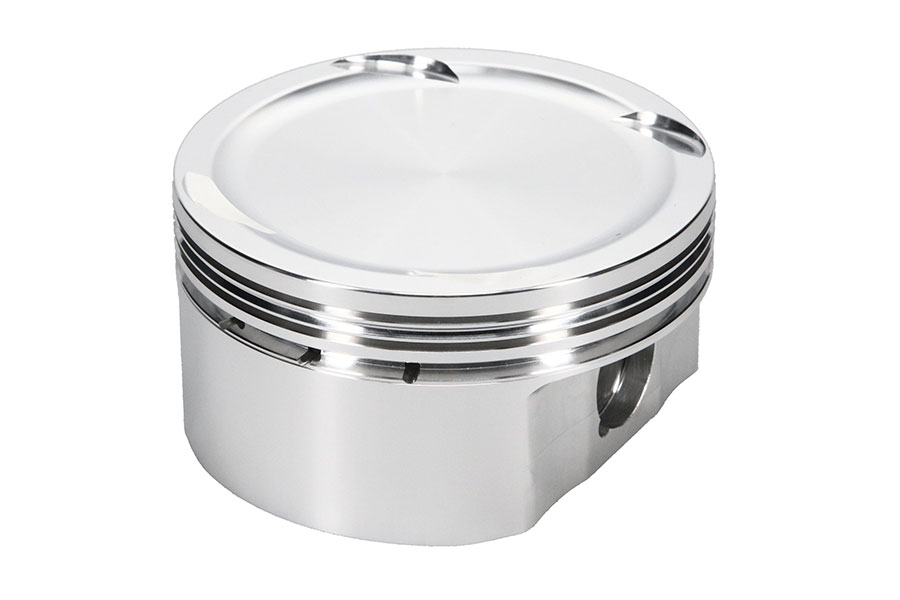

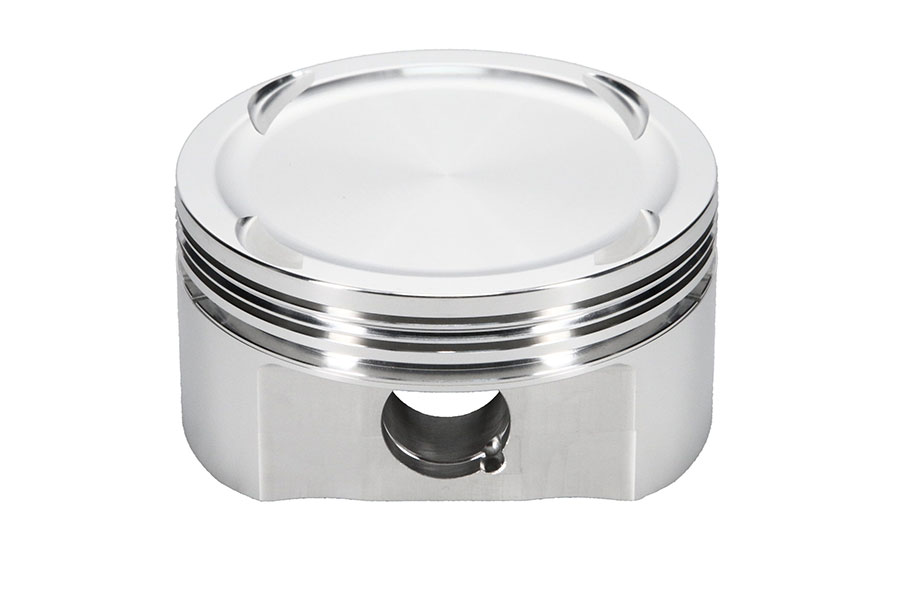

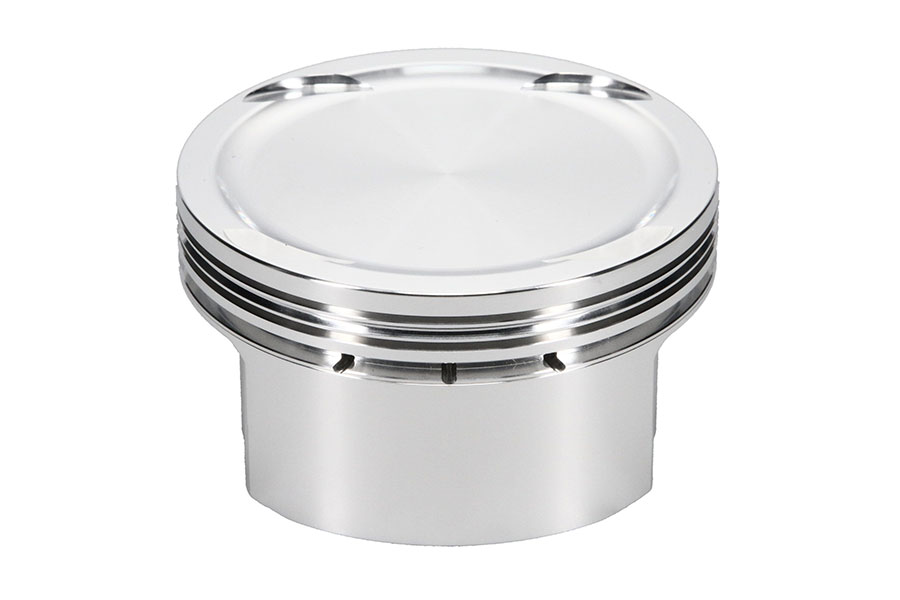

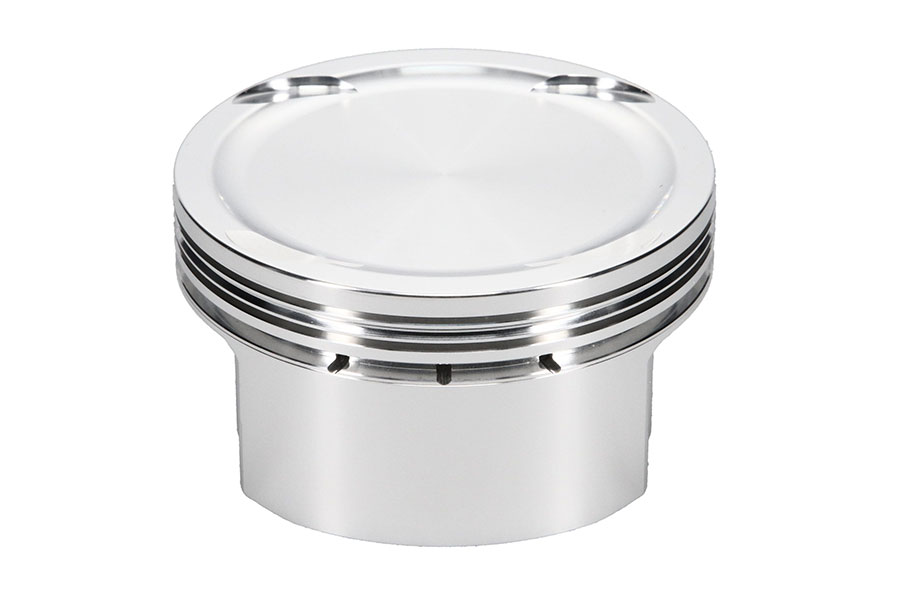

JE Pistons Piston Kit 87.00mm - 308408

Information

Bore Diameter: 87.00mm.

Note: Product images may only represent the class of product and not the specific model.

Vehicle Match

Bore Diameter

87.00

Piston Head Type

Dish

Piston Volume

-8

Cylinder Head

XP 850

Piston Pin Outside Diameter

0.787

Piston Pin Length

2.250

Piston Pin Material

5115

Ringset Included

Yes

Top Compression Ring Thickness

0.04

Second Compression Ring Thickness

0.048

Oil Ring Thickness

0.111

Piston Material

2618

Forging Type

Round

Piston Avg Weight

269

Compression Ratio - Actual

11.50:1

Pin Wall Thickness

0.180
