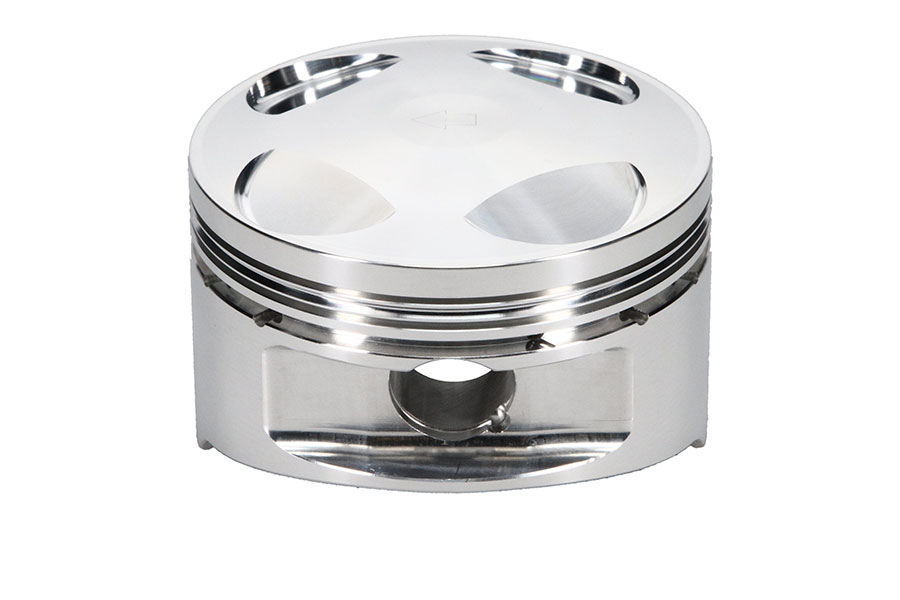

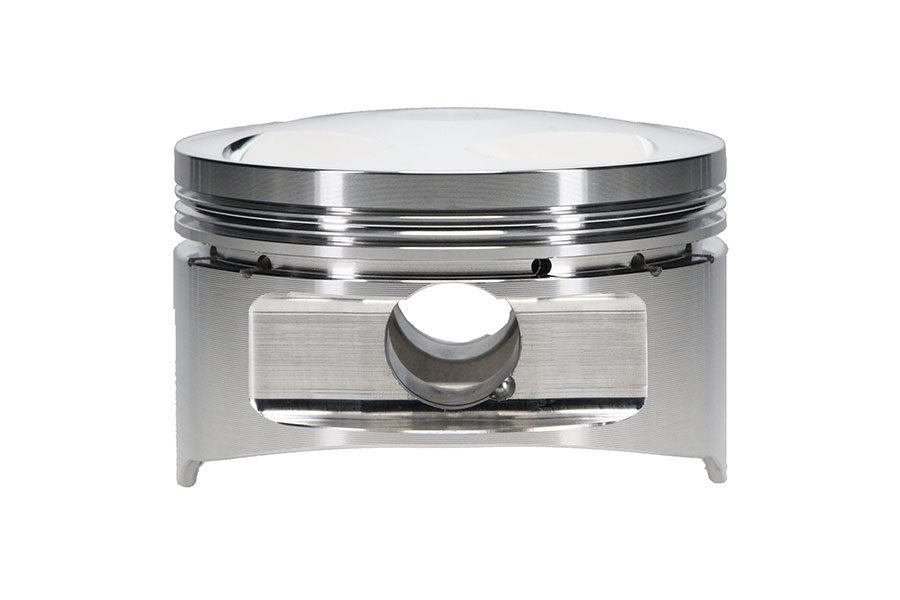

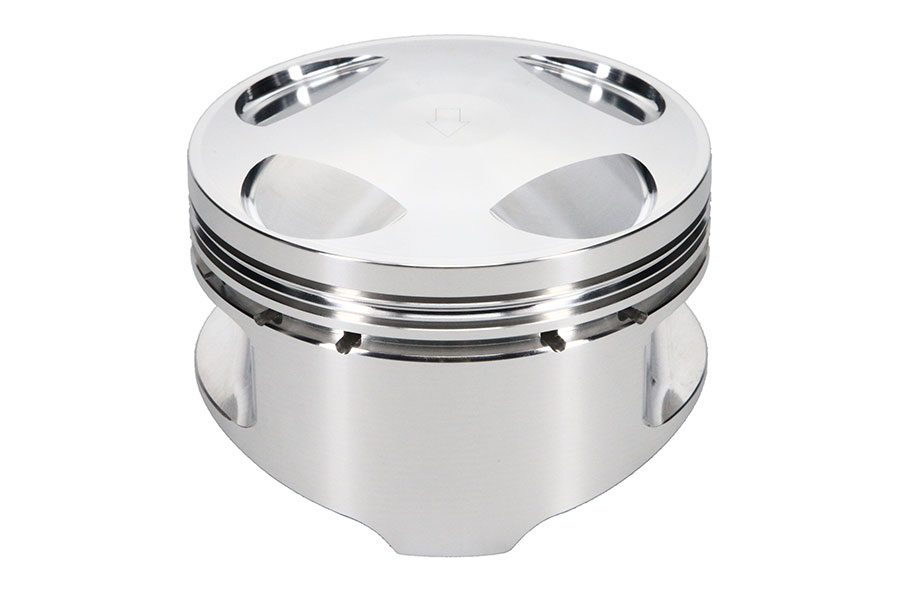

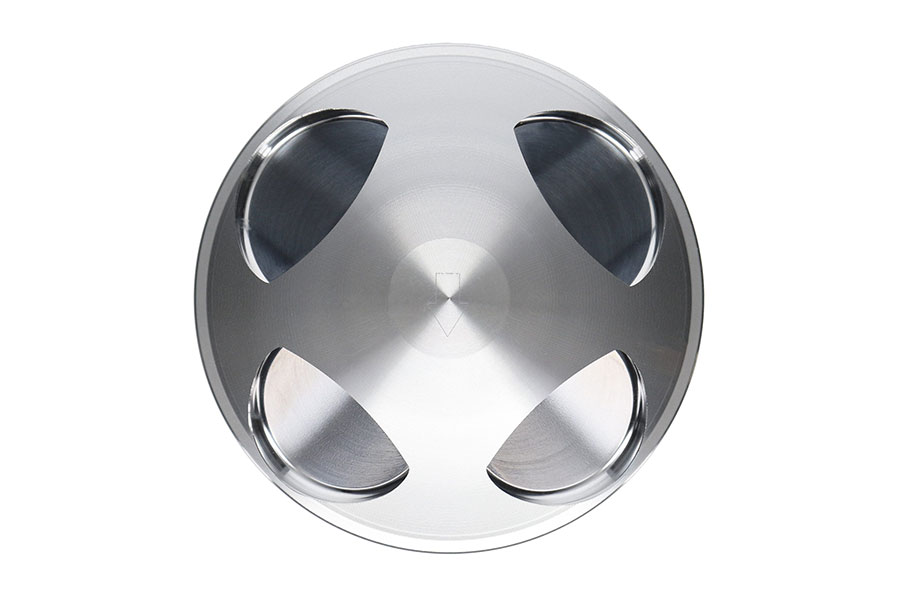

JE Pistons Piston Kit 87.00mm - 133889

Contact us for Availability

$255.00

Information

Bore Diameter: 87.00mm.


Note: Product images may only represent the class of product and not the specific model.
  • Bore Diameter: 87.00mm

Technical Details
Bore Diameter
87.00
Piston Head Type
Dome
Cylinder Head
EX/XR 400 R
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.350
Piston Pin Material
5115
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
Round
Piston Avg Weight
294
Compression Ratio - Actual
10.50:1
Pin Wall Thickness
0.140
