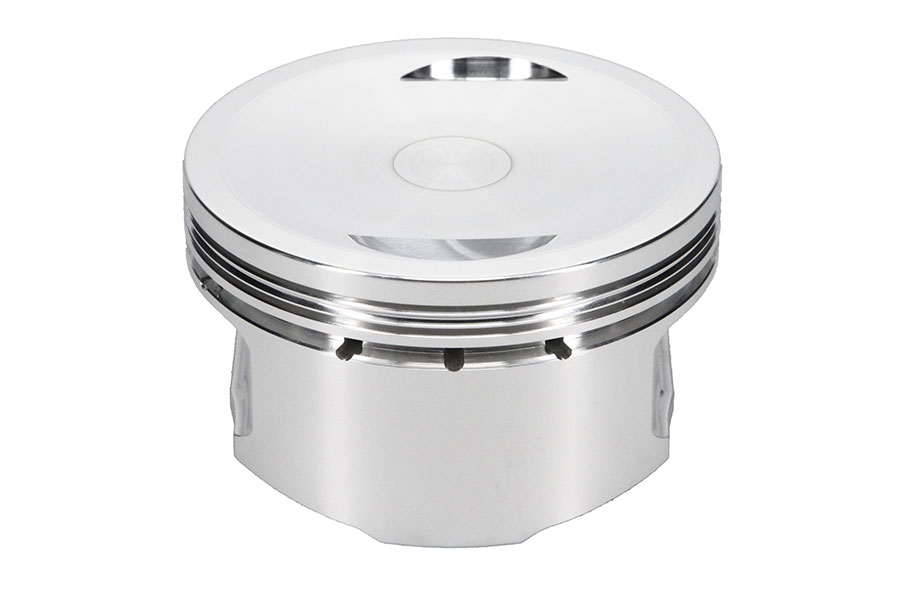

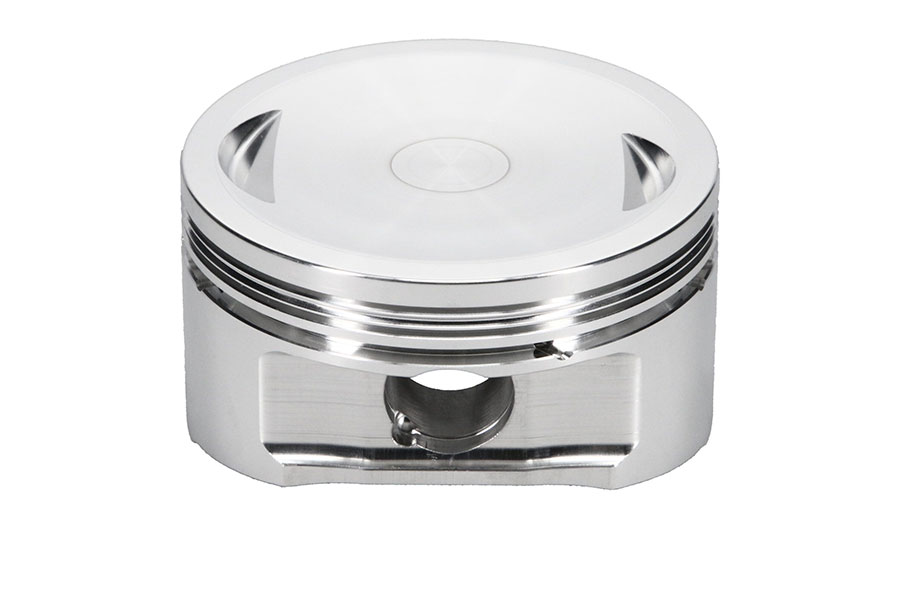

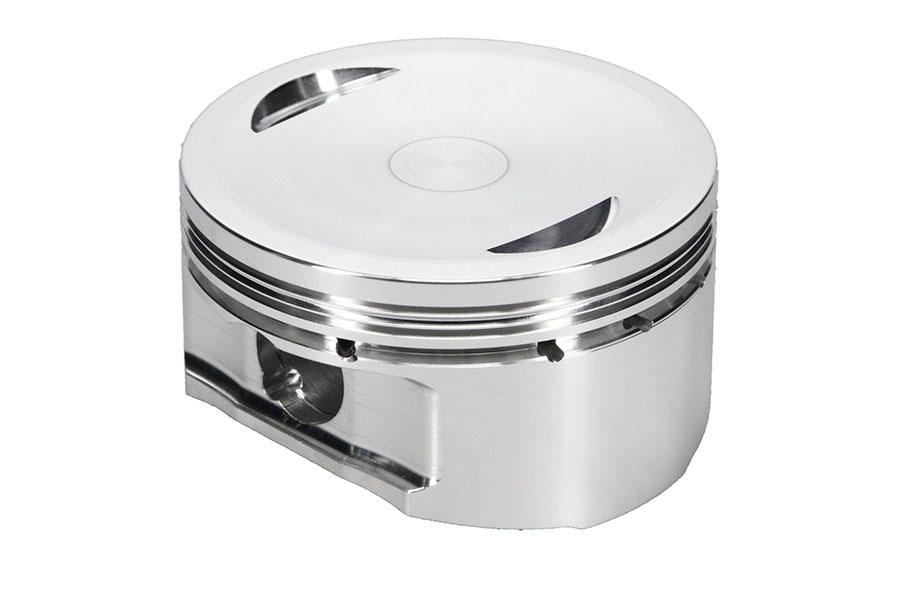

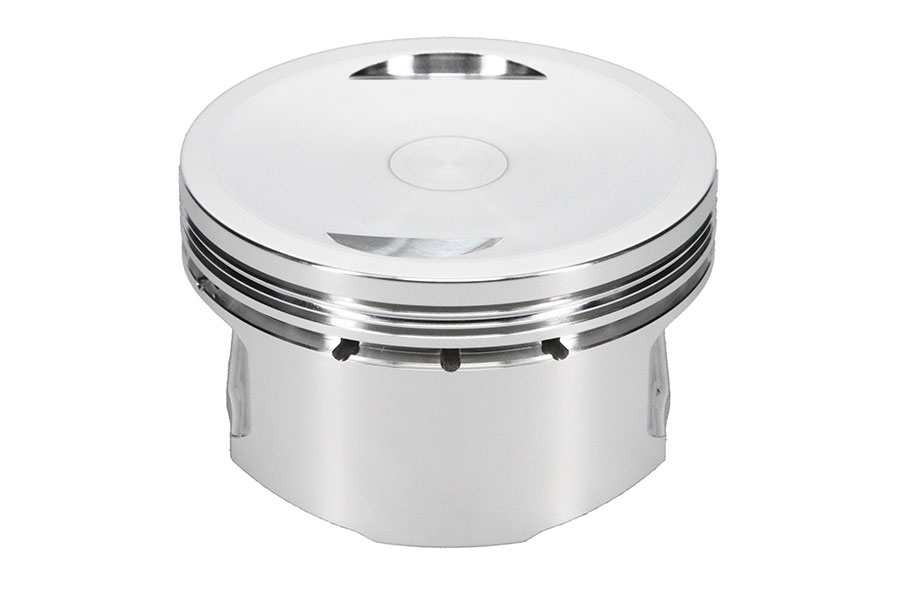

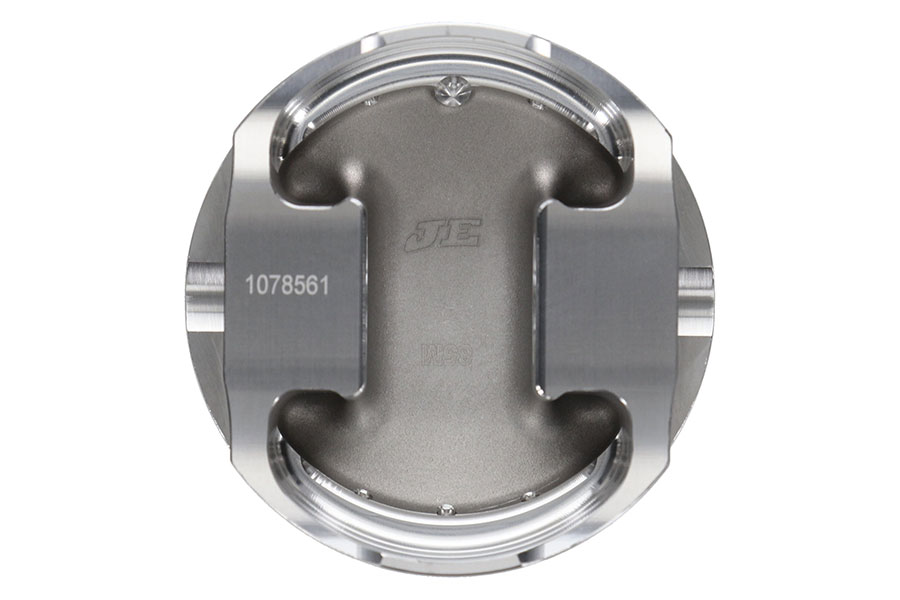

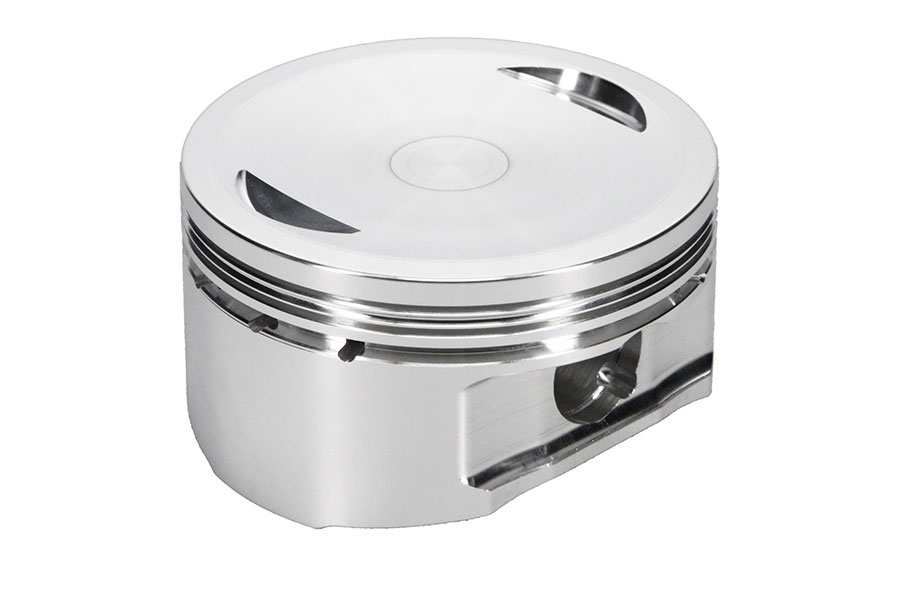

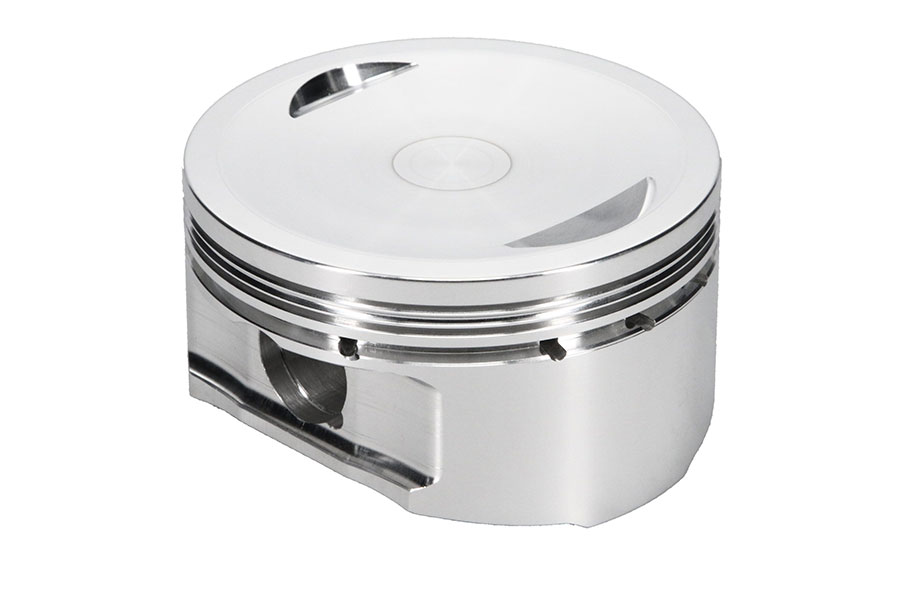

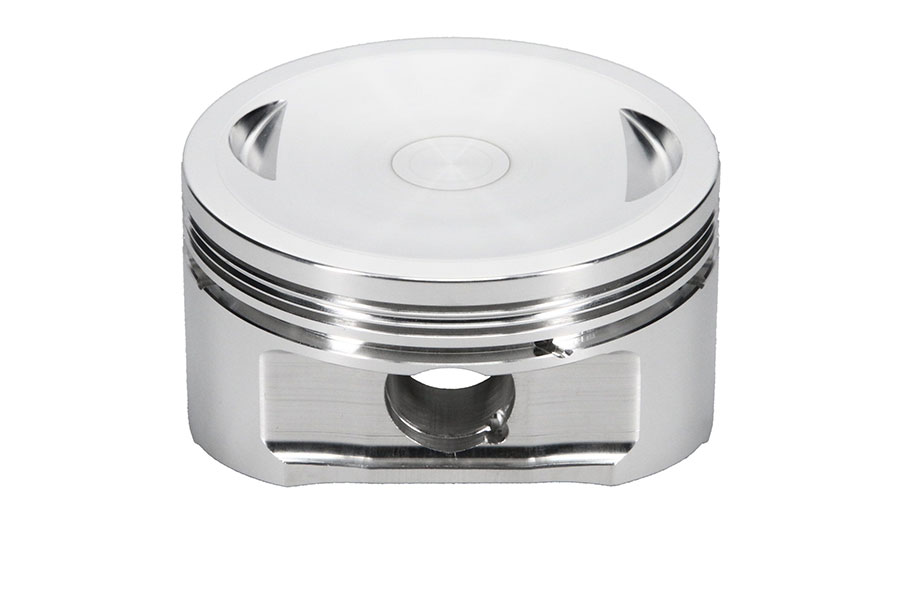

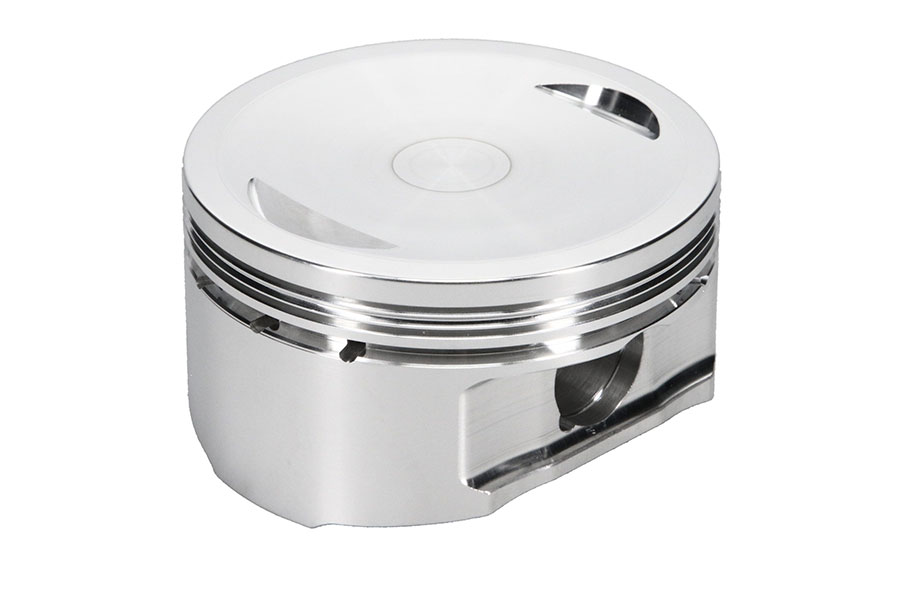

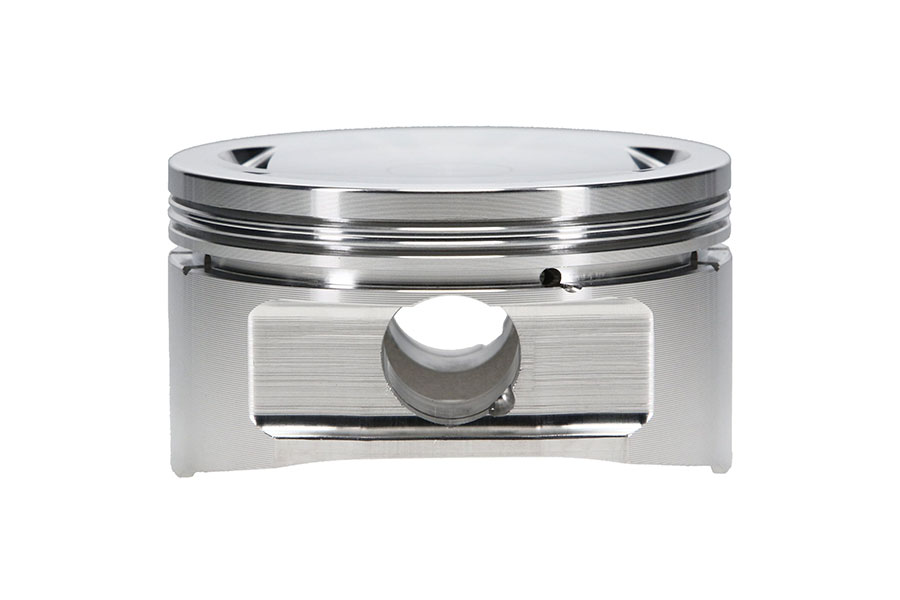

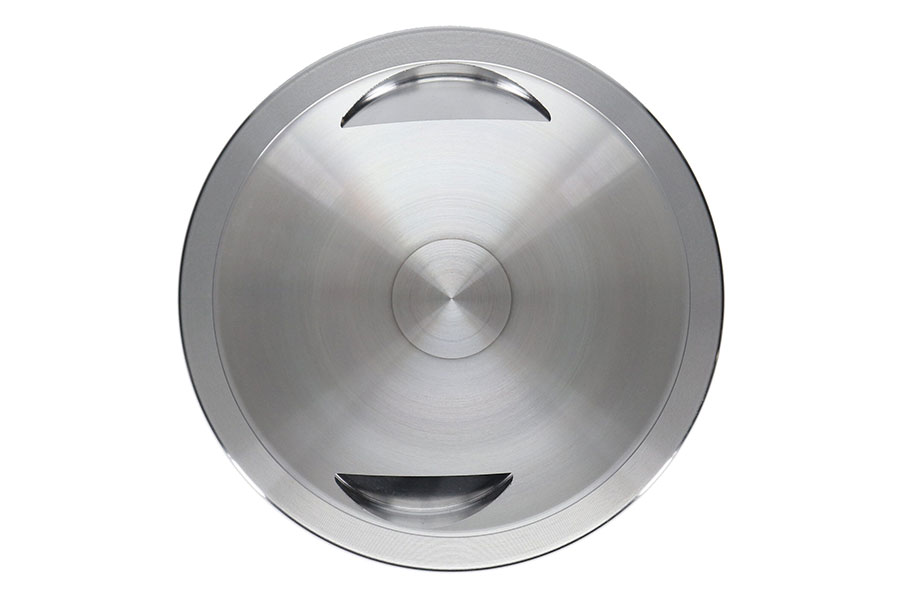

JE Pistons Piston Kit 85.50mm - 261963

Contact us for Availability

$291.50

Information

Bore Diameter: 85.50mm.


Note: Product images may only represent the class of product and not the specific model.
  • Bore Diameter: 85.50mm

Technical Details
Bore Diameter
85.50
Piston Head Type
Dish
Piston Volume
33.6
Cylinder Head
RHINO/GRIZLY
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.250
Piston Pin Material
5115
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
Round
Piston Avg Weight
265
Compression Ratio - Actual
10.50:1
Pin Wall Thickness
0.120

Matched Vehicles

The following are a match for this product.
