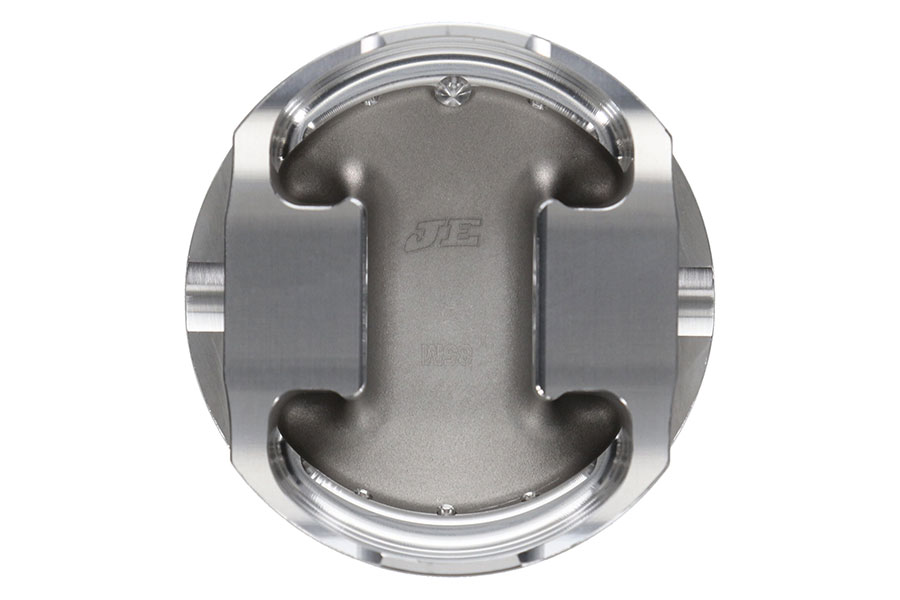

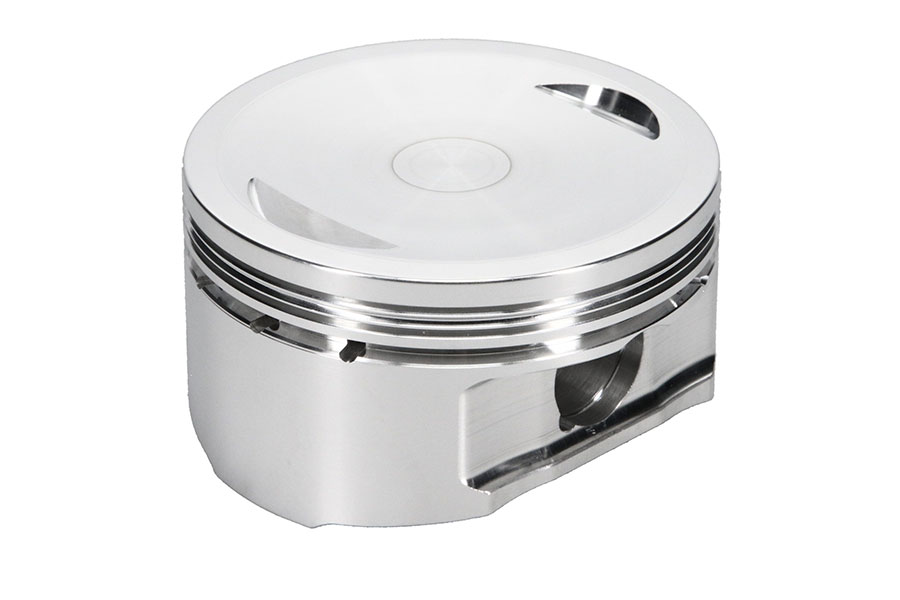

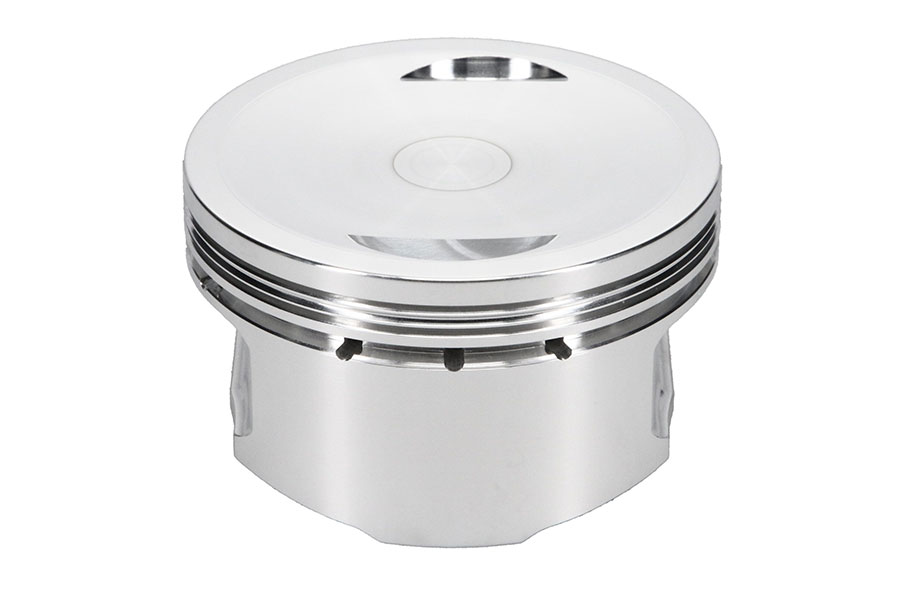

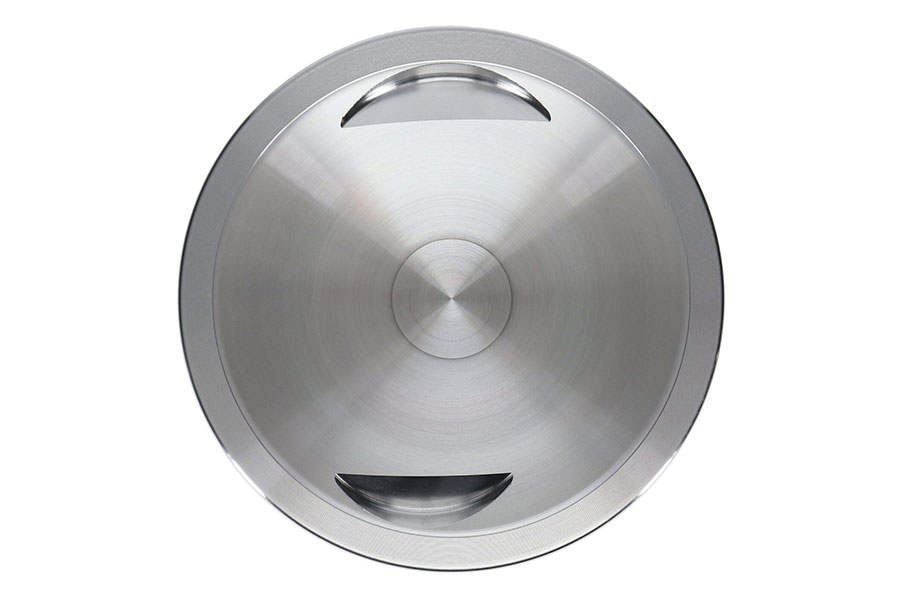

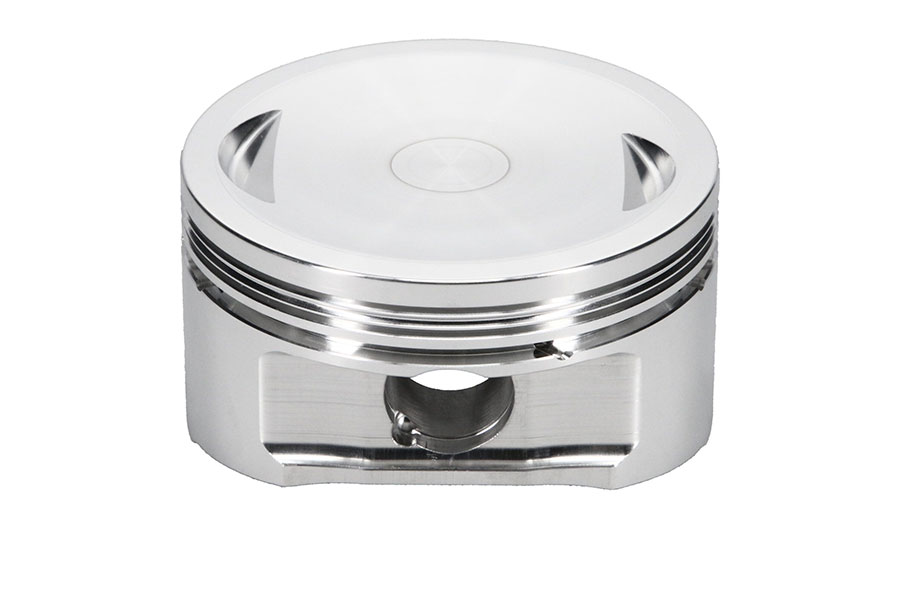

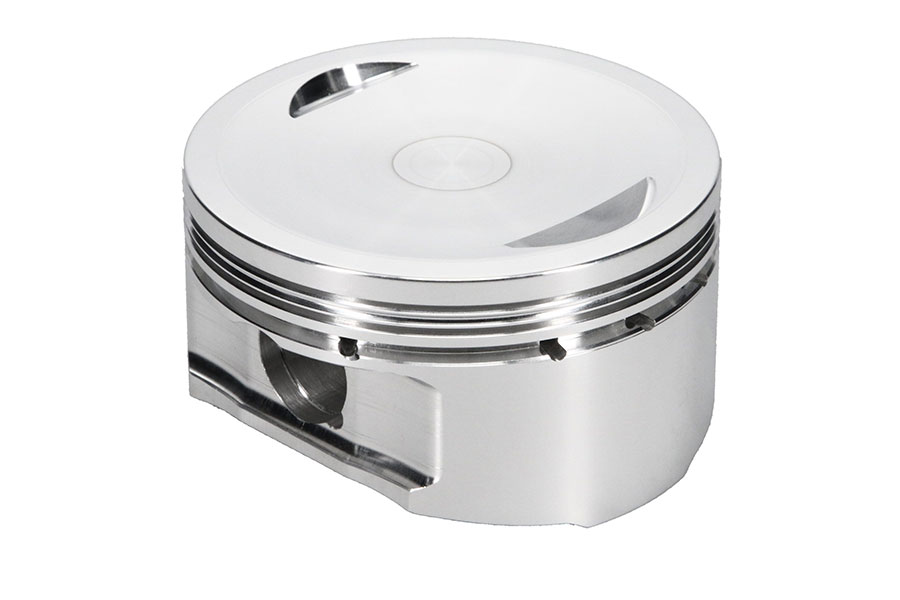

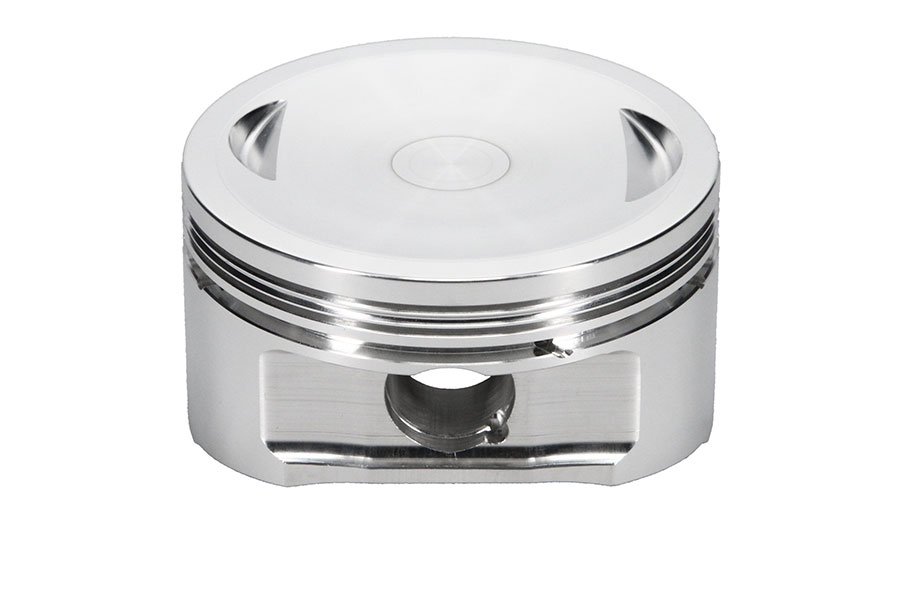

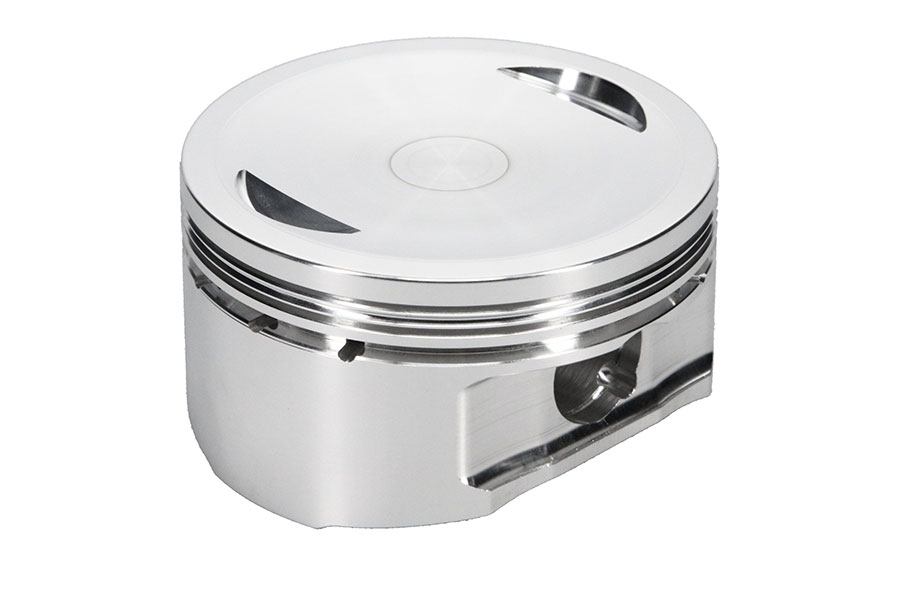

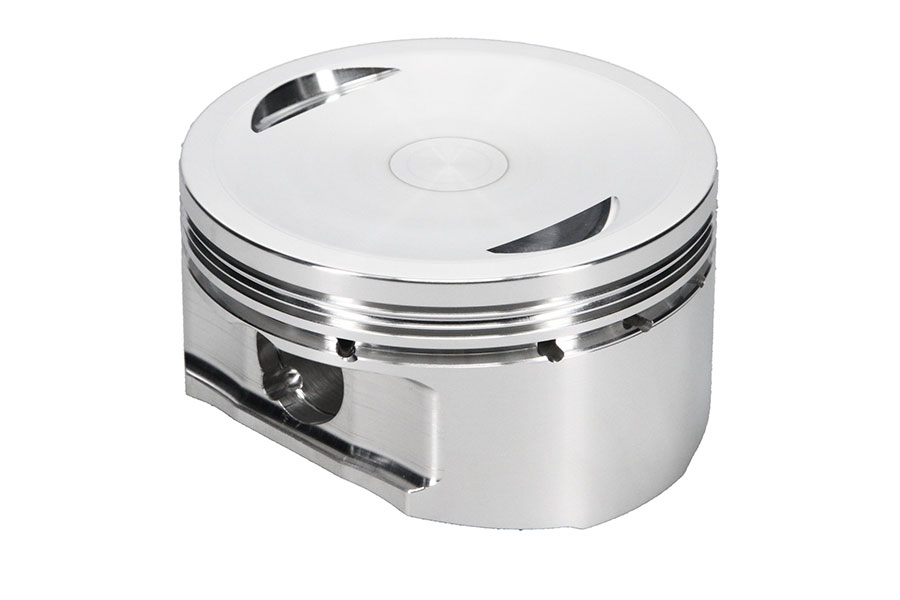

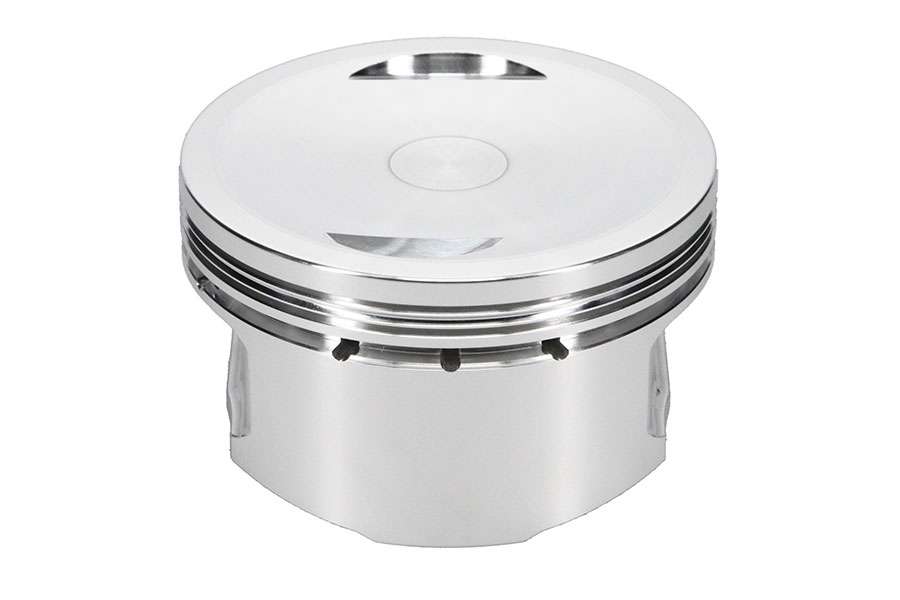

JE Pistons Piston Kit 85.00mm - 261962
Information
Bore Diameter: 85.00mm.
- Manufacturer: JE Pistons
Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 85.00mm
- Technical Details
Bore Diameter
85.00
Piston Head Type
Dish
Piston Volume
33.6
Cylinder Head
RHINO/GRIZLY
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.250
Piston Pin Material
5115
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
Round
Piston Avg Weight
262
Compression Ratio - Actual
10.50:1
Pin Wall Thickness
0.120
Matched Vehicles
The following are a match for this product.
| Yamaha YFM450 Grizzly 4X4 AUTO - 2012, 2011 |
| Yamaha YFM450 Grizzly 4X4 AUTO - 2012, 2011 |
| Yamaha YFM450 Grizzly 4X4 AUTO EPS - 2012, 2011 |
| Yamaha YFM450 Grizzly 4X4 AUTO IRS - 2010, 2009 |
| Yamaha YFM450 Kodiak 450 - 2020, 2019, 2018 |
| Yamaha YFM450 Kodiak 450 EPS - 2020, 2019, 2018 |
| Yamaha YFM450 Kodiak 450 EPS SE - 2020, 2019 |
| Yamaha YFM450F Kodiak AUTO 4X4 - 2006, 2005, 2004, 2003 |
| Yamaha YFM450FX Wolverine 4X4 - 2010, 2009, 2008, 2007, 2006 |
| Yamaha YXR45F Rhino 450 - 2009, 2008, 2007, 2006 |
| Yamaha YXR45F Rhino 450 Special Edition - 2008, 2007 |
