JE Pistons Piston Kit 80.00mm - 324921
Information
Bore Diameter: 80.00mm.
- Manufacturer: JE Pistons

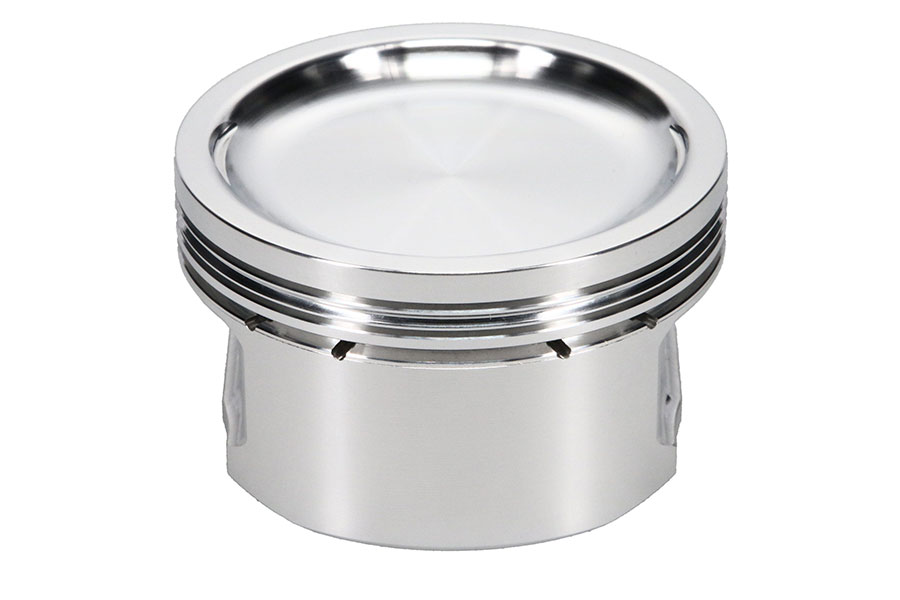

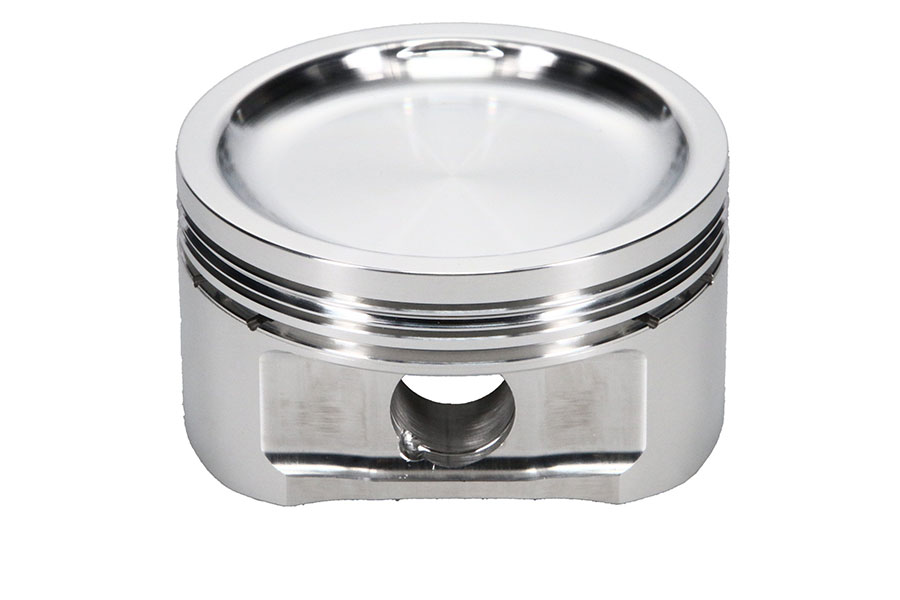

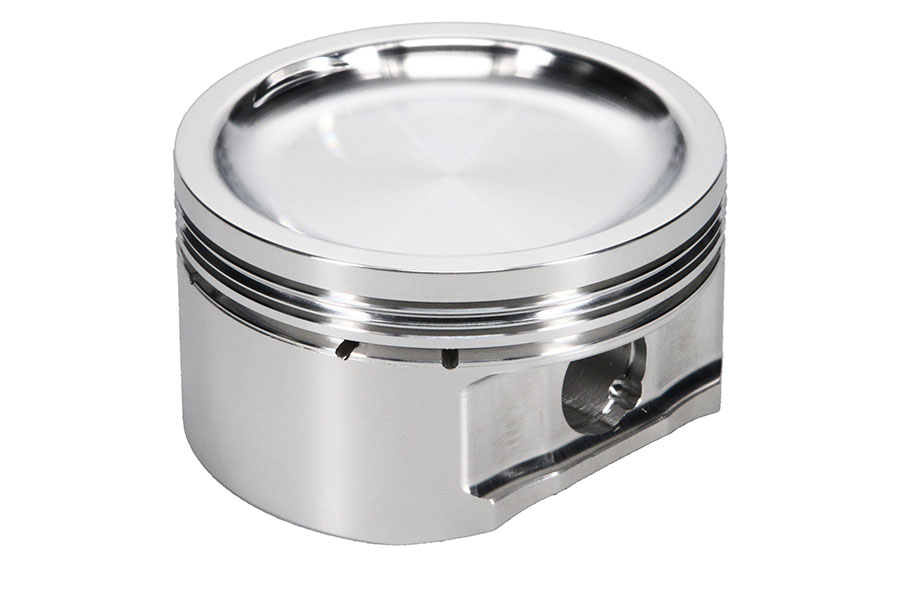

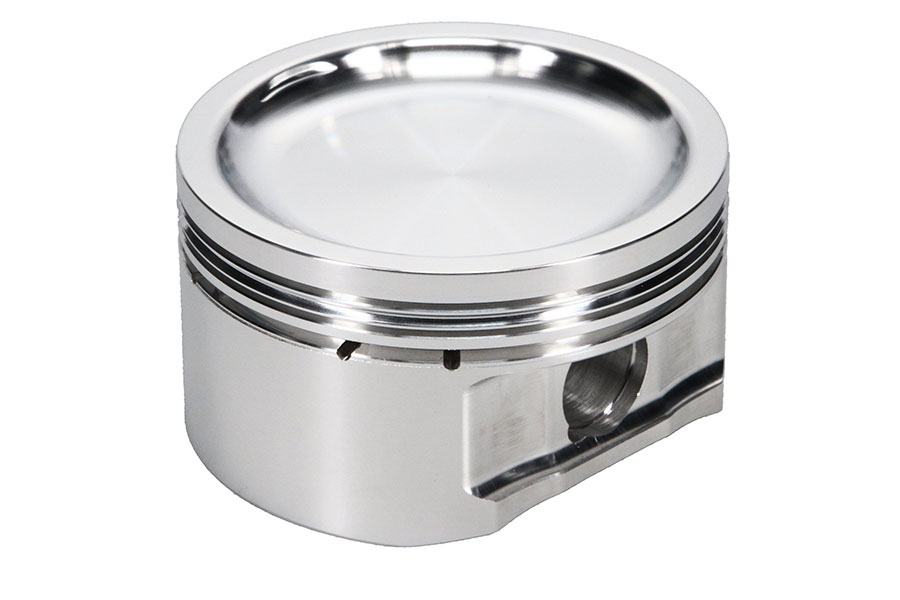

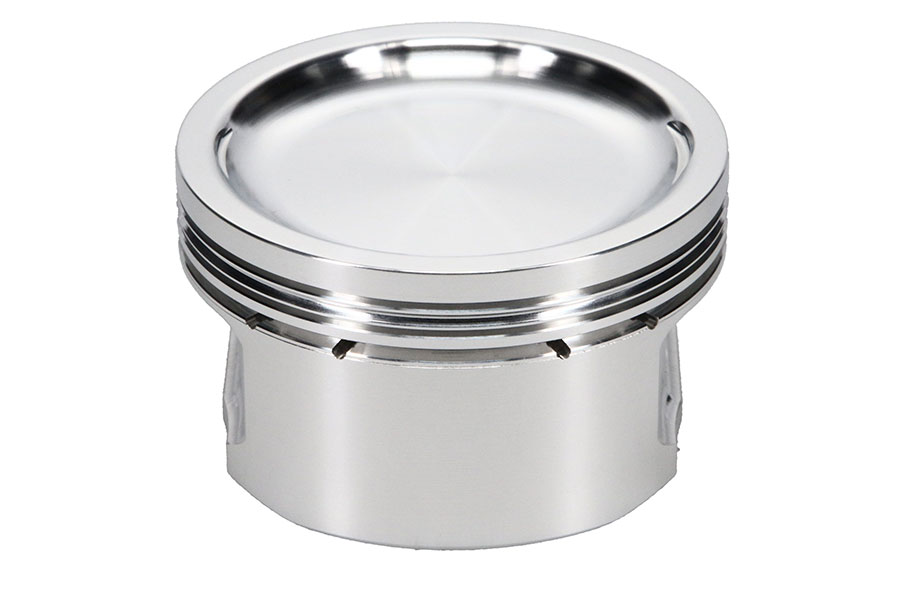

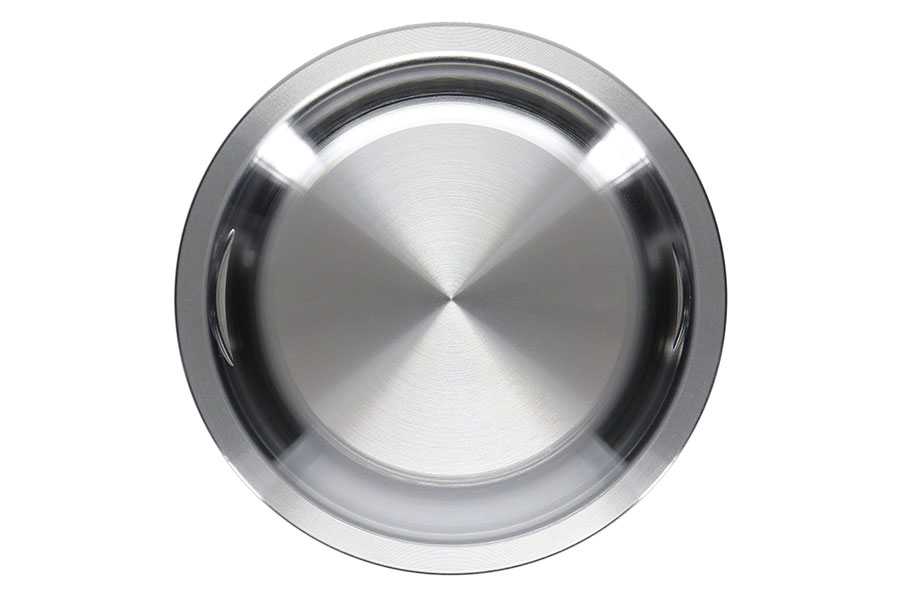

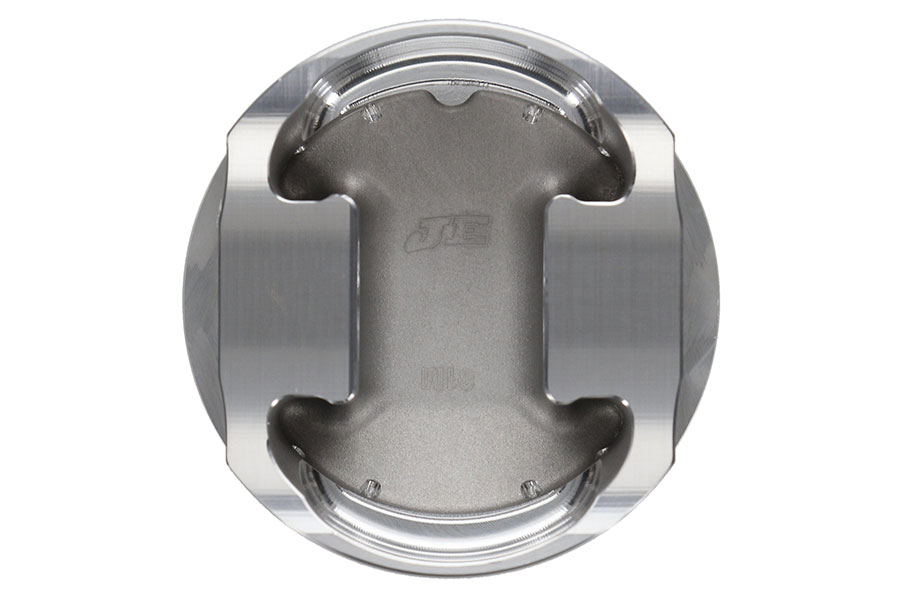

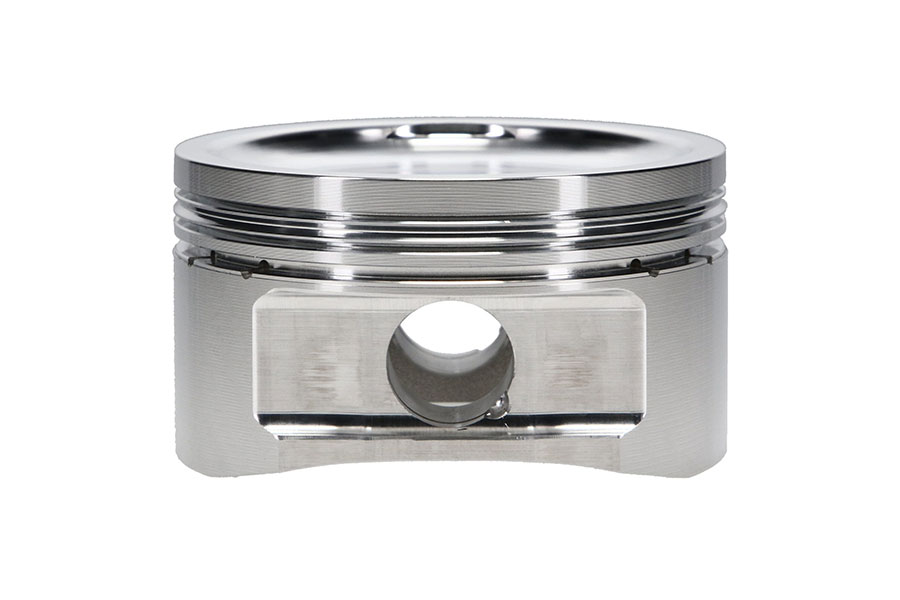

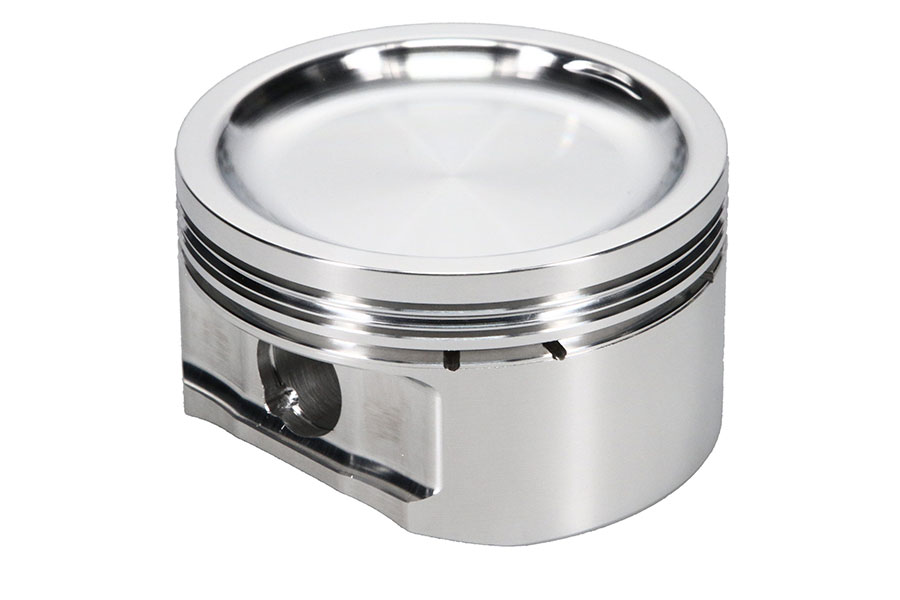

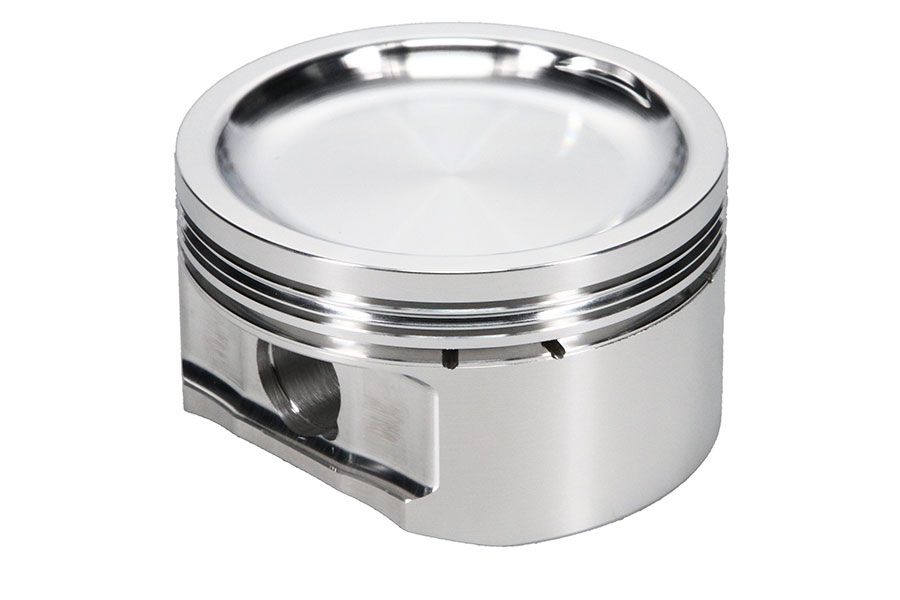

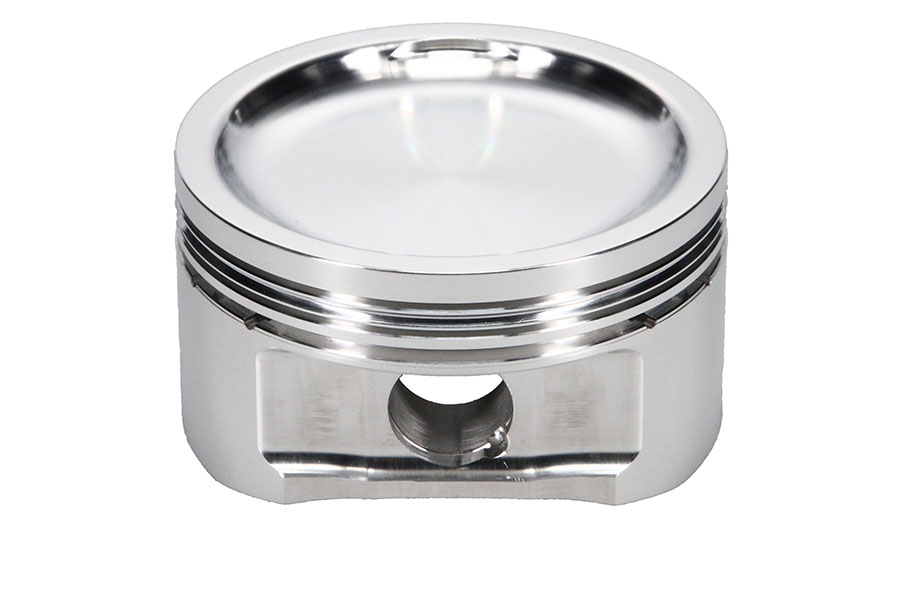

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 80.00mm
- Technical Details
Bore Diameter
80.00
Piston Head Type
Dish
Piston Volume
-15.5
Cylinder Head
RZR 800
Piston Pin Outside Diameter
0.708
Piston Pin Length
2.250
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.04
Oil Ring Thickness
0.0795
Piston Material
2618
Forging Type
Round
Piston Avg Weight
236
Compression Ratio - Actual
11.50:1
Pin Wall Thickness
0.140
Matched Vehicles
The following are a match for this product.
| Polaris 800 Ranger RZR 4 - 2013, 2012 |
| Polaris 800 Ranger RZR 4 EPS LE - 2013 |
| Polaris 800 Ranger RZR 4 EPS Robby Gordon - 2011 |
| Polaris 800 Ranger RZR 4 EPS Robby Gordon LE - 2012 |
| Polaris 800 Ranger RZR 4 Gordon Edition - 2012, 2011, 2010 |
| Polaris 800 Ranger RZR - 2013, 2012, 2011, 2010, 2009, 2008 |
| Polaris 800 Ranger RZR EPS - 2011, 2010 |
| Polaris 800 Ranger RZR EPS LE - 2013, 2012 |
| Polaris 800 Ranger RZR LE - 2013, 2012 |
| Polaris 800 Ranger RZR S - 2013, 2012, 2011, 2010, 2009 |
| Polaris 800 Ranger RZR S LE - 2013, 2012 |
| Polaris 800 Ranger RZR SW Military - 2011 |
| Polaris 800 Ranger RZR S EPS LE - 2013 |
| Polaris Ranger RZR S Military - 2009 |
| Polaris 800 RZR 4 EPS LE - 2014 |
| Polaris 800 RZR - 2014 |
| Polaris 800 RZR EPS LE - 2014 |
| Polaris 800 RZR XC Edition - 2014 |
| Polaris 800 RZR S - 2014 |
| Polaris 800 RZR S EPS LE - 2014 |
| Polaris 800 Sportsman 6X6 Big Boss - 2012 |
| Polaris 800 Sportsman EFI - 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005 |
| Polaris 800 Sportsman EFI 6X6 Big Boss - 2011, 2010, 2009 |
| Polaris 800 Sportsman EFI Deluxe - 2007 |
| Polaris 800 Sportsman EFI HO - 2010, 2009, 2008 |
| Polaris 800 Sportsman EFI Touring - 2009, 2008 |
| Polaris 800 Sportsman EFI X2 - 2009, 2008, 2007 |
| Polaris 800 Sportsman EFI X2 Deluxe - 2007 |
| Polaris 800 Sportsman HO EFI Military - 2008 |
| Polaris 800 Sportsman FOREST - 2014, 2013, 2012 |
| Polaris 800 Sportsman FOREST 6X6 - 2014, 2013, 2012 |
