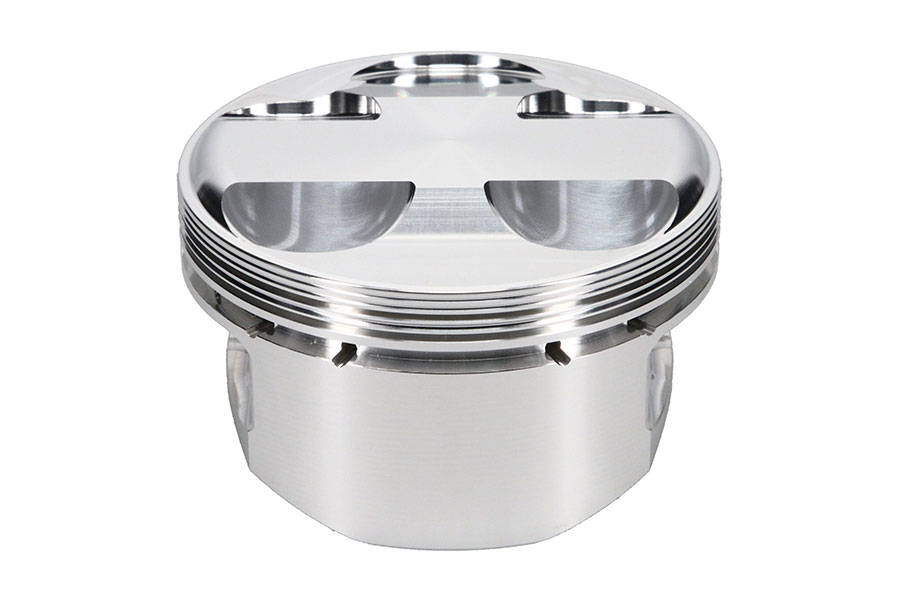

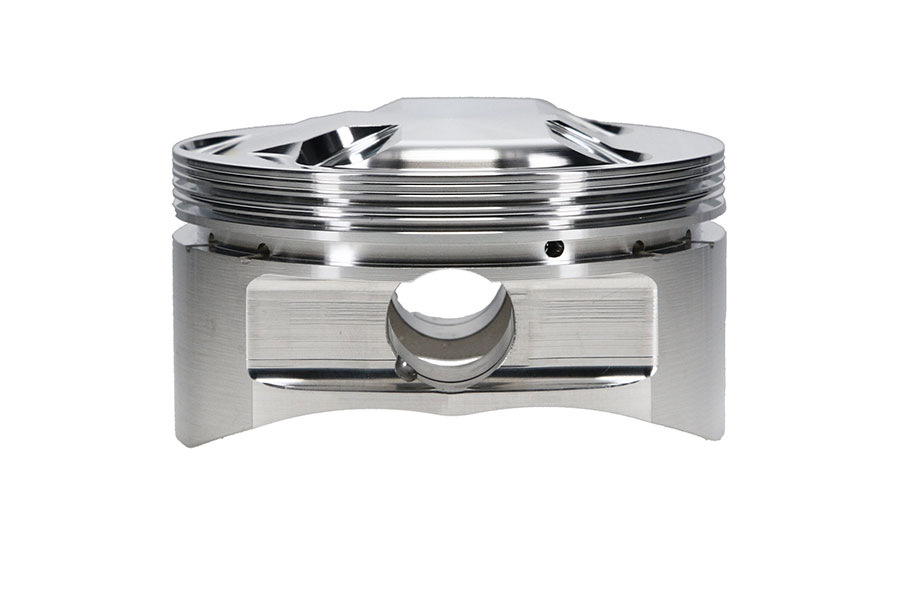

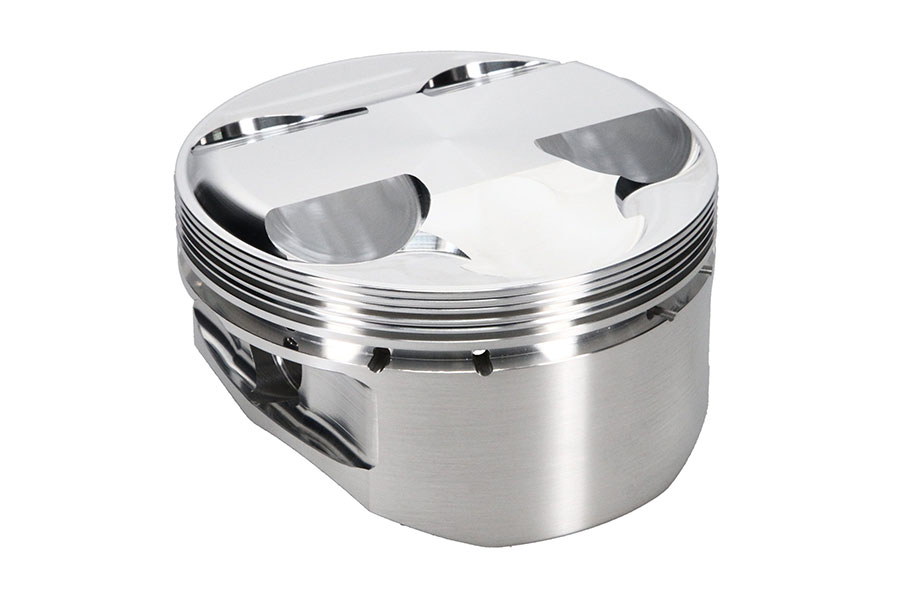

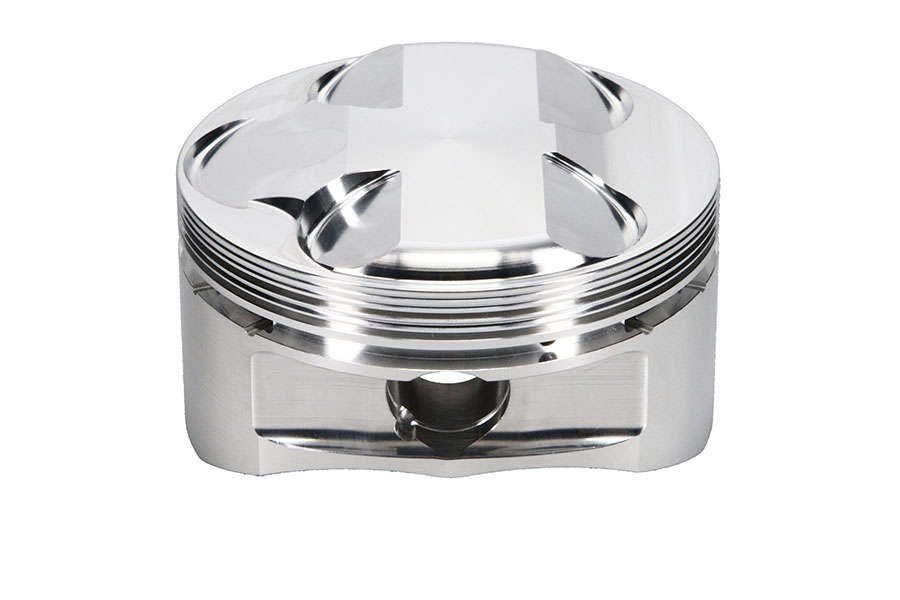

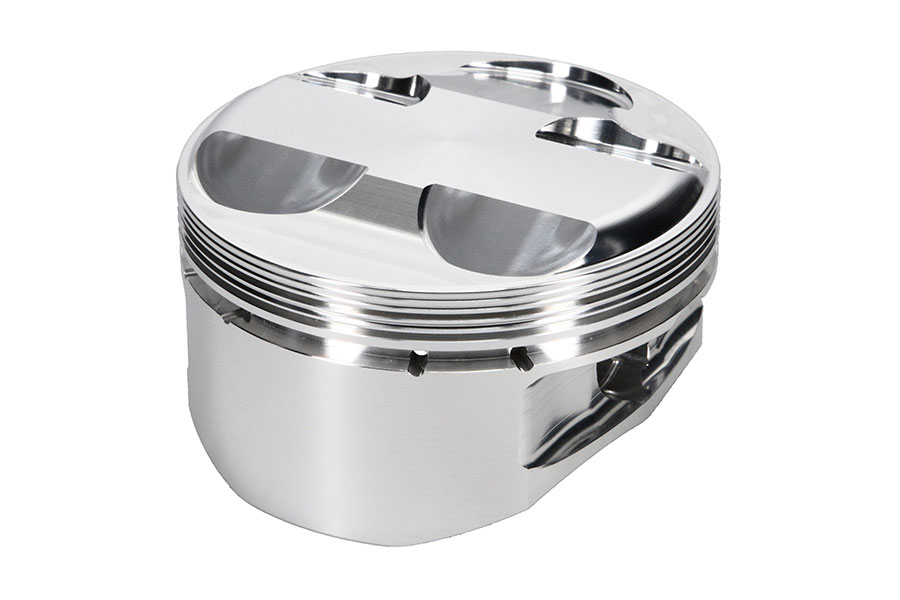

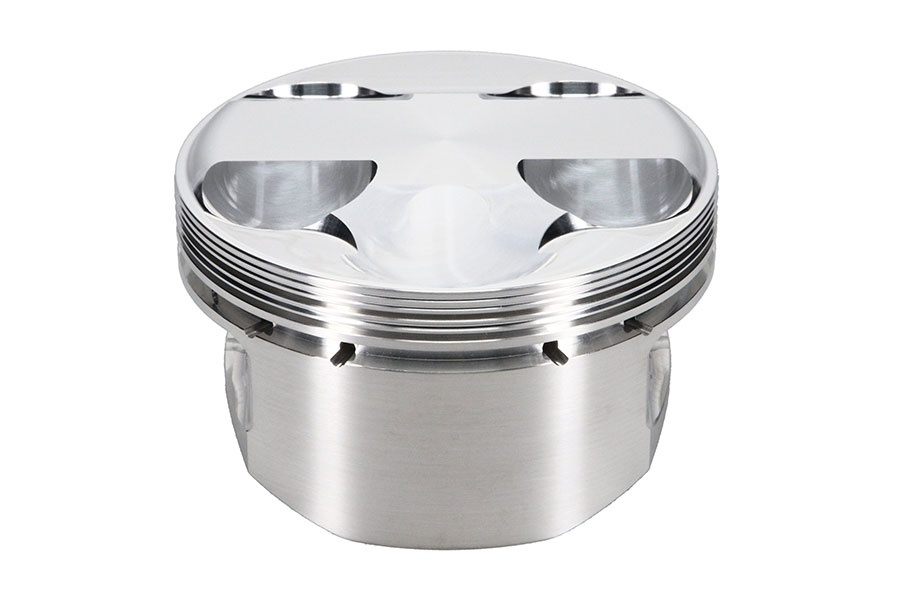

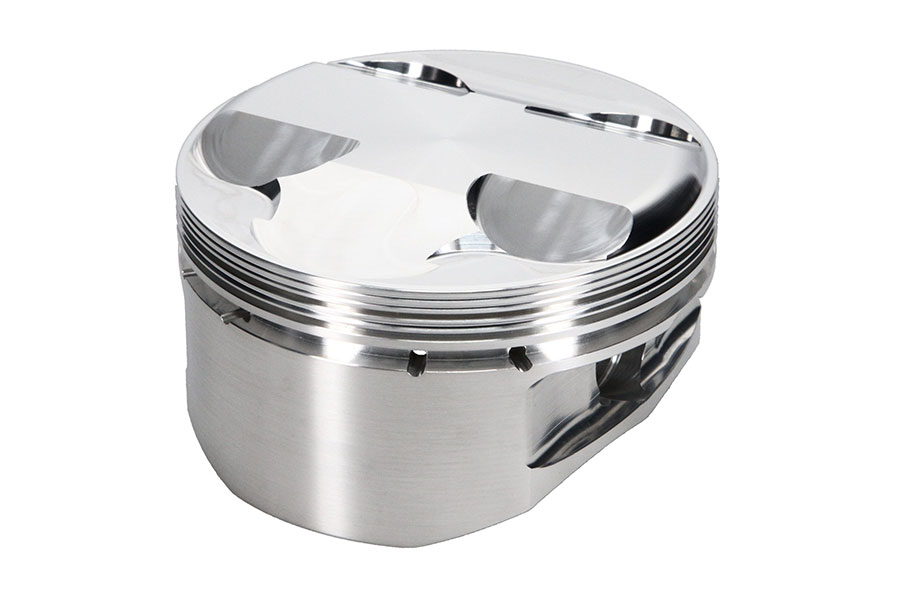

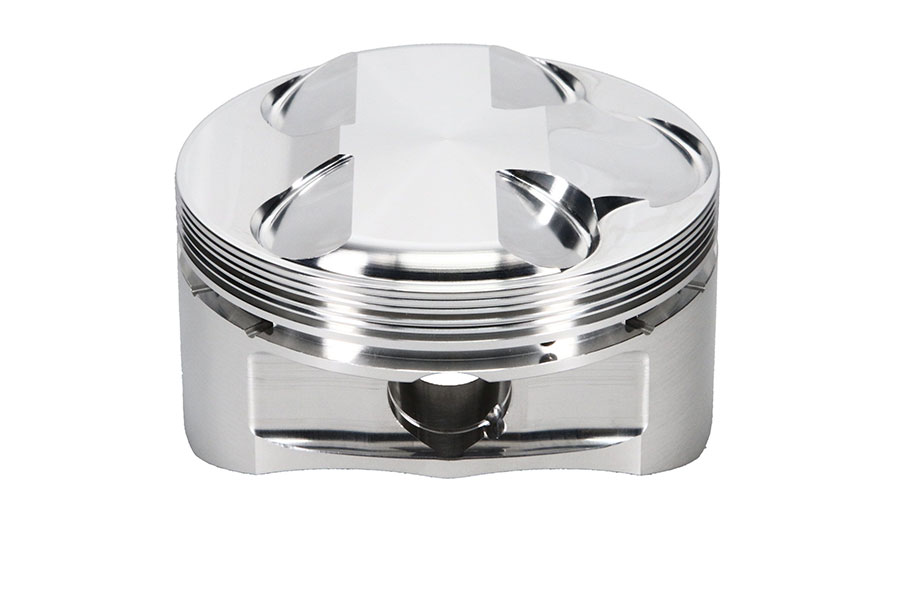

JE Pistons Piston Kit 100.00mm - 272145
Information
Bore Diameter: 100.00mm.
- Manufacturer: JE Pistons

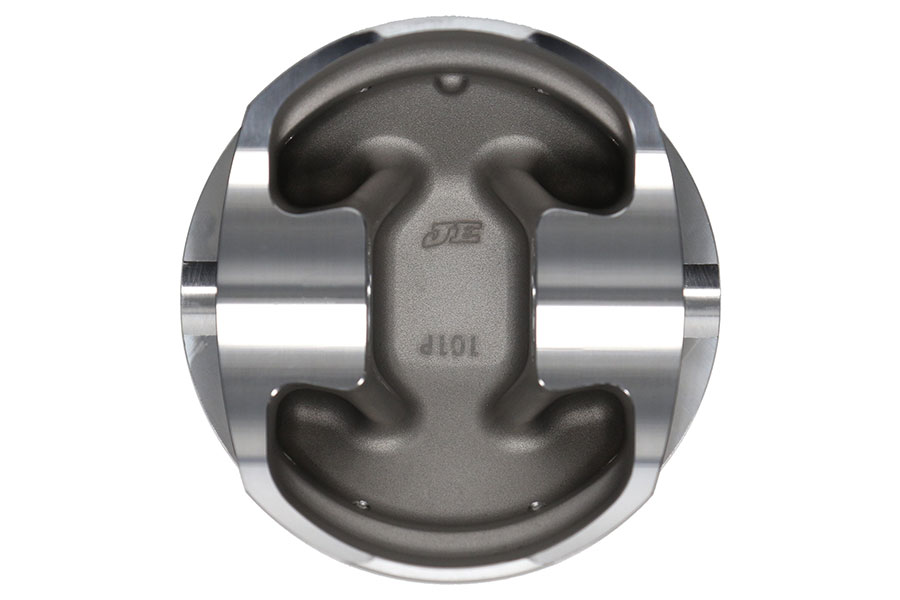

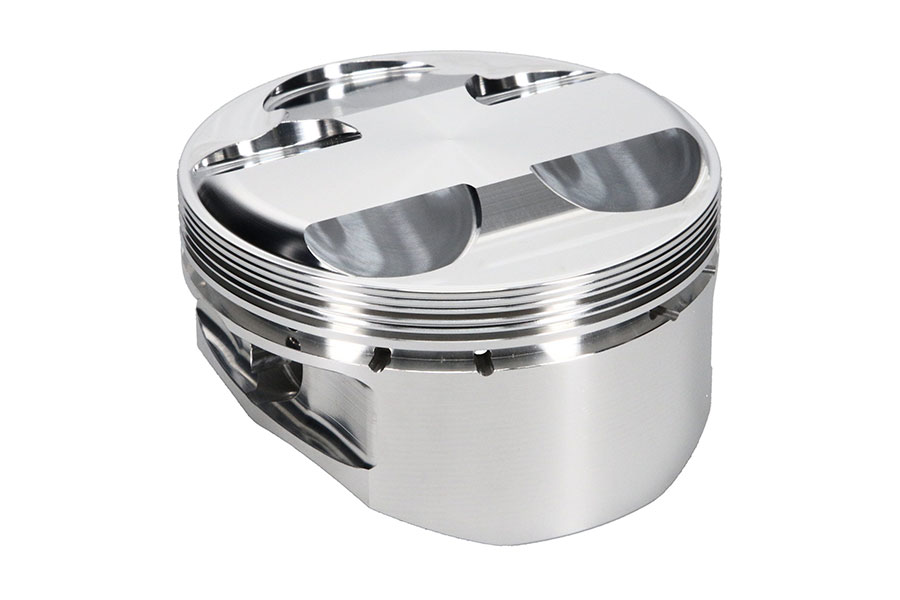

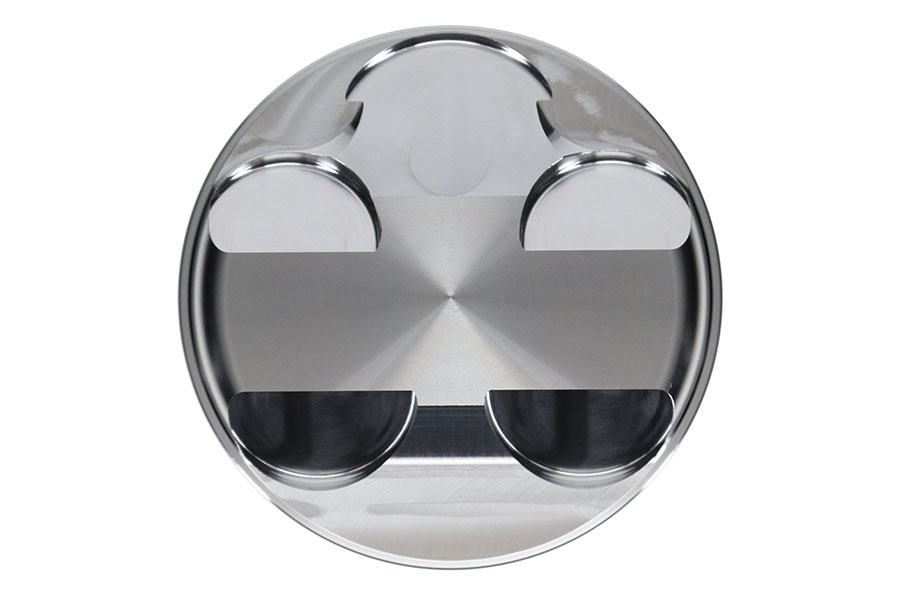

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 100.00mm
- Technical Details
Bore Diameter
100.00
Piston Head Type
Dome
Piston Volume
23.6
Cylinder Head
5V 600
Piston Pin Outside Diameter
0.866
Piston Pin Length
2.500
Piston Pin Material
5115
Ringset Included
Yes
Top Compression Ring Thickness
0.048
Second Compression Ring Thickness
0.06
Oil Ring Thickness
0.159
Piston Material
2618
Forging Type
Round
Piston Avg Weight
428
Compression Ratio - Actual
12.00:1
Pin Wall Thickness
0.150
Matched Vehicles
The following are a match for this product.
| Yamaha YFM660F Grizzly 4X4 - 2008, 2007, 2006, 2005, 2004, 2003, 2002 |
| Yamaha YFM660R Raptor - 2005, 2004, 2003, 2002, 2001 |
| Yamaha YXR66F Rhino 660 - 2007, 2006 |
| Yamaha YXR66F Rhino 660 Ducks UNLIMITED - 2007 |
| Yamaha YXR66F Rhino 660 Exploring Edition - 2007, 2006 |
| Yamaha YXR66F Rhino 660 Special Edition - 2007, 2006 |
| Yamaha YXR66F Rhino 660 Sport Edition - 2007 |
