L.A.SLEEVE Sleeve - L40 - [4" X 4-1/4" X 6"]
Information

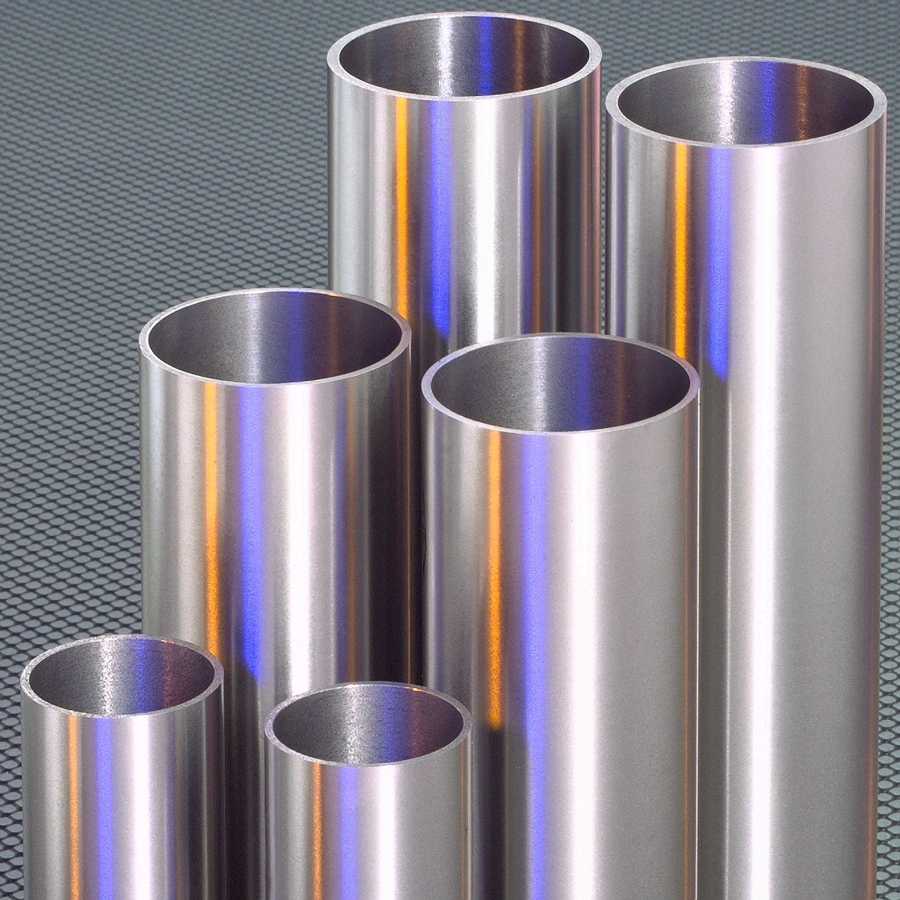

Straight 1/8” wall repair sleeve. Outside diameter precision centerless ground to exact roundness for ease of installation.
- Manufacturer: L.A.SLEEVE
4” X 4-1/4” X 6”
Straight 1/8” wall repair sleeve.
Outside diameter precision centerless ground to exact roundness for ease of installation.
Inside diameter is semi-finished and must be bored and honed to size piston after installation.
Sleeve features chamfer on bottom inside and outside diameters.
Standard Bore Size 4.000”
Matched Vehicles
The following are a match for this product.
| American Motors 327 - 1969, 1968, 1967, 1966, 1965, 1964, 1963, 1962, 1961, 1960, 1959, 1958, 1957, 1956 |
| American Motors 151 2.5L - 1983, 1982, 1981, 1980 |
| Buick 350L 5.7L - 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974, 1973, 1972, 1971, 1970, 1969, 1968, 1967, 1966, 1965, 1964, 1963, 1962, 1961, 1960, 1959, 1958, 1957, 1956, 1955, 1954, 1953 |
| Buick 322 - 1956, 1955, 1954, 1953 |
| Buick 301 5.0L - 1981, 1980, 1979, 1978, 1977 |
| Buick 151 2.5L - 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980 |
| Cadillac 350 5.7L - 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990 |
| Chevrolet 350 5.7L - 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974, 1973, 1972, 1971, 1970, 1969, 1968, 1967, 1966, 1965, 1964, 1963, 1962 |
| Chevrolet 327 - 1974, 1973, 1972, 1971, 1970, 1969, 1968, 1967, 1966, 1965, 1964, 1963, 1962 |
| Chevrolet 302 - 1974, 1973, 1972, 1971, 1970, 1969, 1968, 1967, 1966, 1965, 1964, 1963, 1962 |
| Chevrolet 262 4.3L - 2005, 2004, 2003, 2002, 2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985 |
| Chevrolet 151 2.5L - 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978 |
| GM 350 5.7L - 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974, 1973, 1972, 1971, 1970, 1969, 1968, 1967, 1966, 1965, 1964, 1963, 1962 |
| GM 350L 5.7L - 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974, 1973, 1972, 1971, 1970, 1969, 1968, 1967, 1966, 1965, 1964, 1963, 1962, 1961, 1960, 1959, 1958, 1957, 1956, 1955, 1954, 1953 |
| GM 327 - 1974, 1973, 1972, 1971, 1970, 1969, 1968, 1967, 1966, 1965, 1964, 1963, 1962 |
| GM 302 - 1974, 1973, 1972, 1971, 1970, 1969, 1968, 1967, 1966, 1965, 1964, 1963, 1962 |
| GM 301 5.0L - 1981, 1980, 1979, 1978, 1977 |
| GM 262 4.3L - 2005, 2004, 2003, 2002, 2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985 |
| GM 151 2.5L - 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977 |
| Lincoln 351 5.8L - 1974, 1973, 1972, 1971, 1970 |
| Mercury 351 5.8L - 1975, 1974, 1973, 1972, 1971, 1970 |
| Oldsmobile 350L 5.7L - 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977 |
| Oldsmobile 301 5.0L - 1981, 1980, 1979, 1978, 1977 |
| Oldsmobile 151 2.5L - 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977 |
| Pontiac 350L 5.7L - 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977 |
| Pontiac 301 5.0L - 1981, 1980, 1979, 1978, 1977 |
| Pontiac 262 4.3L - 2005, 2004, 2003, 2002, 2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985 |
| Pontiac 151 2.5L - 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977 |
