L.A.SLEEVE Big Bore Cylinder 88cc - N8852

Out of Stock

Information

ProCross cylinders are made from aircraft quality billet aluminum, CNC designed and machined and anodized. Installed is a cast-iron chrome-moly alloy sleeve liner, bored and honed to 52mm bore size.

  • Part Number: N8852
  • Manufacturer: L.A.SLEEVE
Note: Product images may only represent the class of product and not the specific model.

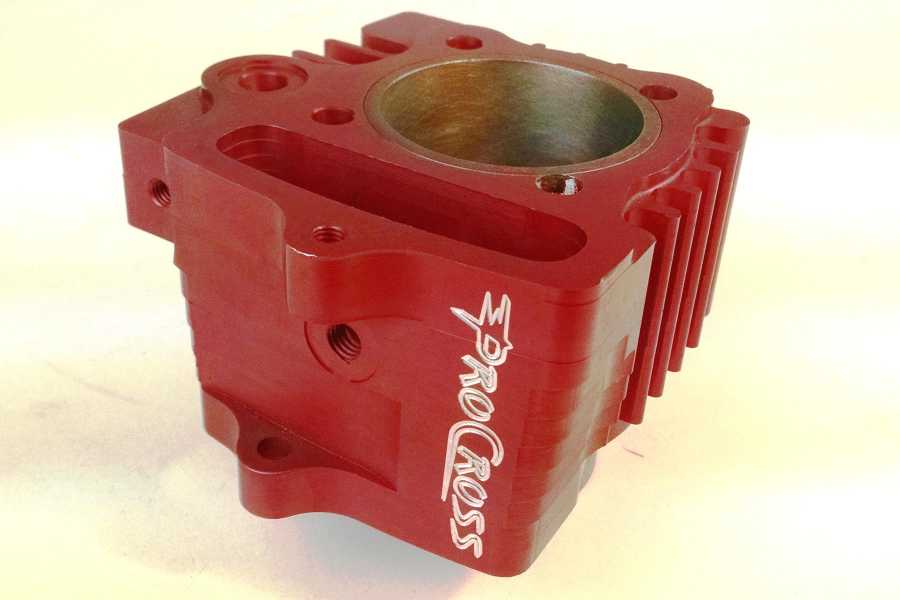

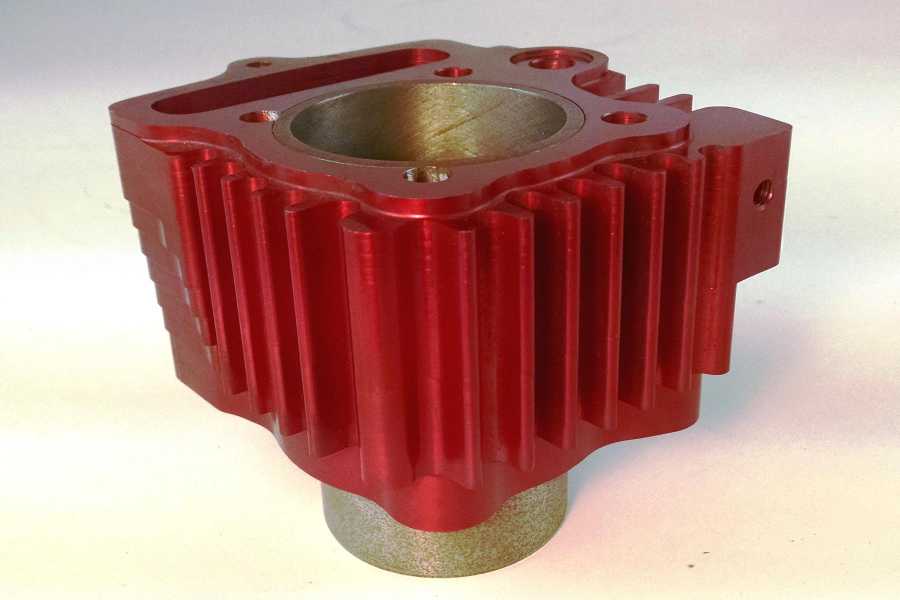

ProCross Billet Big Bore Cylinder 88cc, 52mm

This is a NEW ProCross Billet Big Bore Cylinder 88cc, 52mm for the Honda XR50R 00-03 & CRF50F 2004-16. Also fits Z50 88-99, XR-70R and CRF-70F all years.
Check you cylinder bore size before buying.

This listing is for the cylinder only. You will need to already have or provide for yourself the 52mm piston kit and gasket kit.

  1. The ProCross cylinder will accept all piston brands, cast or forged, stock compression or hi-compression.
  2. The 88cc bore size is 52.00mm.
  3. The cylinder also accepts all gasket brands for the 88cc engine.
  4. This is a BOLT-ON cylinder to your stock bottom end.
  5. A qualified machine shop is required to measure your cylinder to fit the piston.

ProCross cylinders are made from aircraft quality billet aluminum, CNC designed and machined and anodized. Installed is a cast-iron chrome-moly alloy sleeve liner, bored and honed to 52mm bore size.

You will receive quantity 1 each part no. N8852 big bore cylinder when you purchase.

Vehicle Match

Show all vehicles that match this product

Matched Vehicles

The following are a match for this product.

Honda CRF-50F - 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000
Honda XR-50 - 2003, 2002, 2001, 2000
Honda CRF-70F - 2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000
Honda XR-70 - 2003, 2002, 2001, 2000, 1999, 1998, 1997
